Checking ATF: Notes

NOTE:
  • Top up only ATF approved by Porsche.
  • The stipulated fluid level -3- is extremely important for perfect functioning of the automatic transmission, it is correct if there is a slight amount of ATF escaping at the filler screw bore -2- at temperatures between 30°C and 40°C. See Fig 1

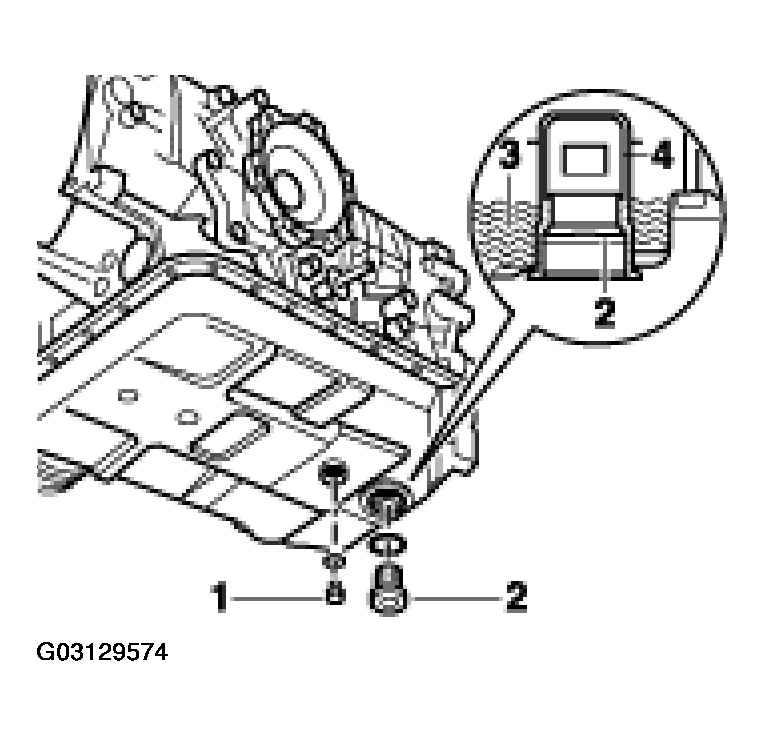

Fig 1: Unscrewing ATF Drain Screw
G03129574Courtesy of PORSCHE OF NORTH AMERICA, INC.
