Electrical System (Steering-Angle Sensor): Notes

The fault is stored in the event of a fault in the electrical system of the steering angle sensor or a voltage drop.

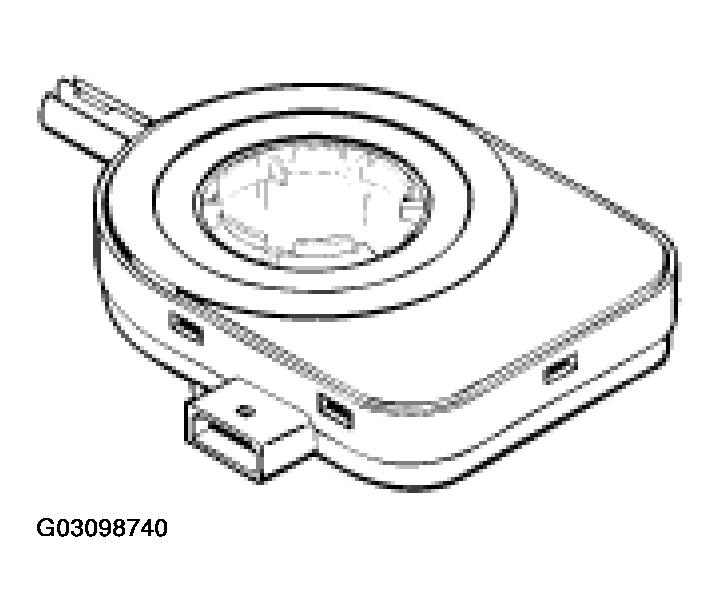

Fig 1: Identifying Steering Angle Sensor

G03098740

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

As of model year 2003 a new steering angle sensor with 6-pole plug is installed.
When troubleshooting follow the relevant work instruction since the pin assignment has changed.
