Removing and installing front cover: Notes
Courtesy of PORSCHE OF NORTH AMERICA, INC.

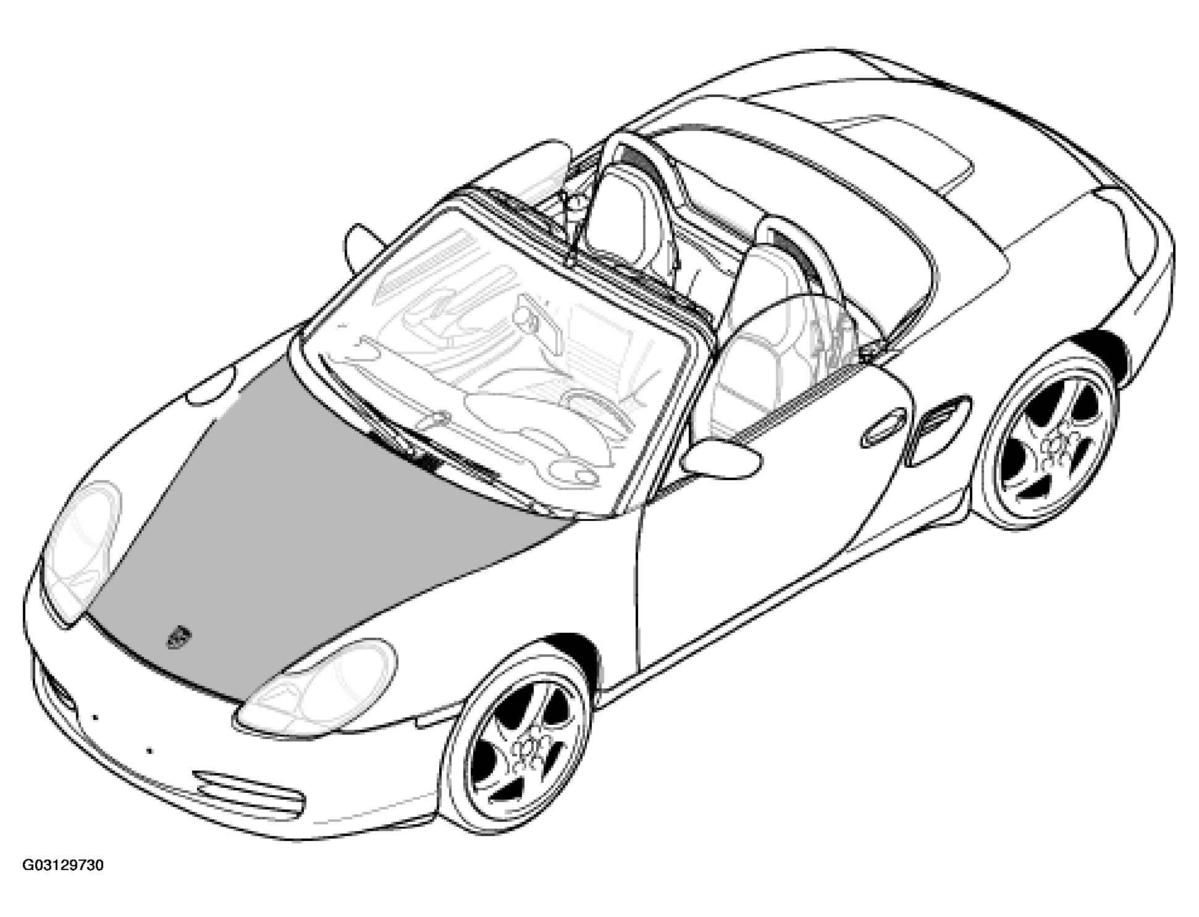

Courtesy of PORSCHE OF NORTH AMERICA, INC. FRONT COVER REMOVING AND INSTALLING PROCEDURE
| No. |
Designation |
Qty. |
Removal |
Installation |
| 1 |
Combination screw M6 x 14 |
4 |
|
Tightening torque:-10 Nm (7.5 ftlb.)- |
| 2 |
Covens |
1 |

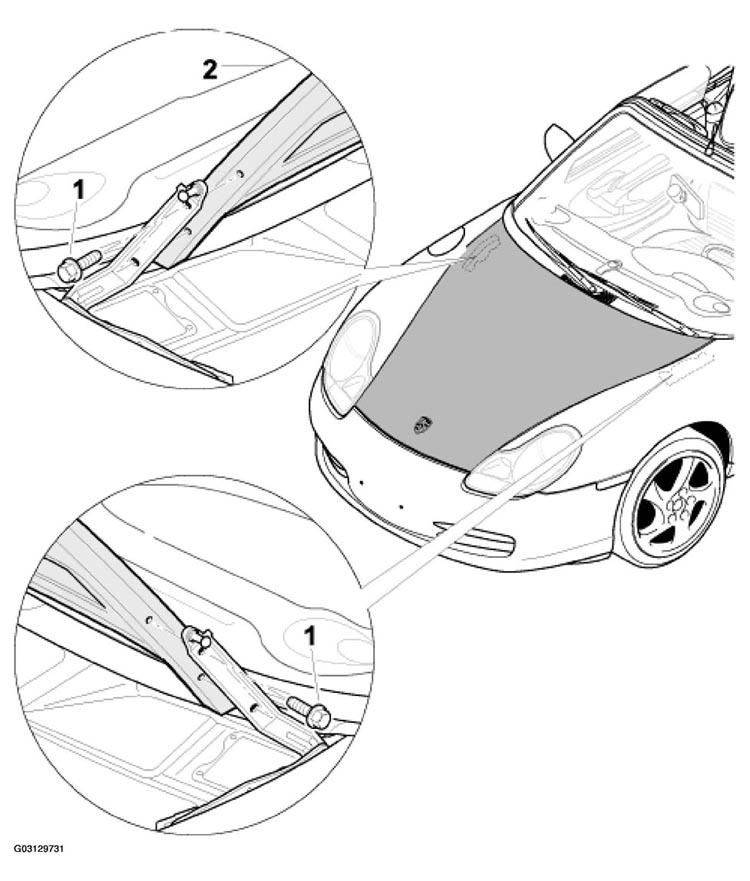

Undo combination screws -1-2-
. See Fig 2
. |
Position cover -2-
. See Fig 2
. |
