Circuit Protection Devices

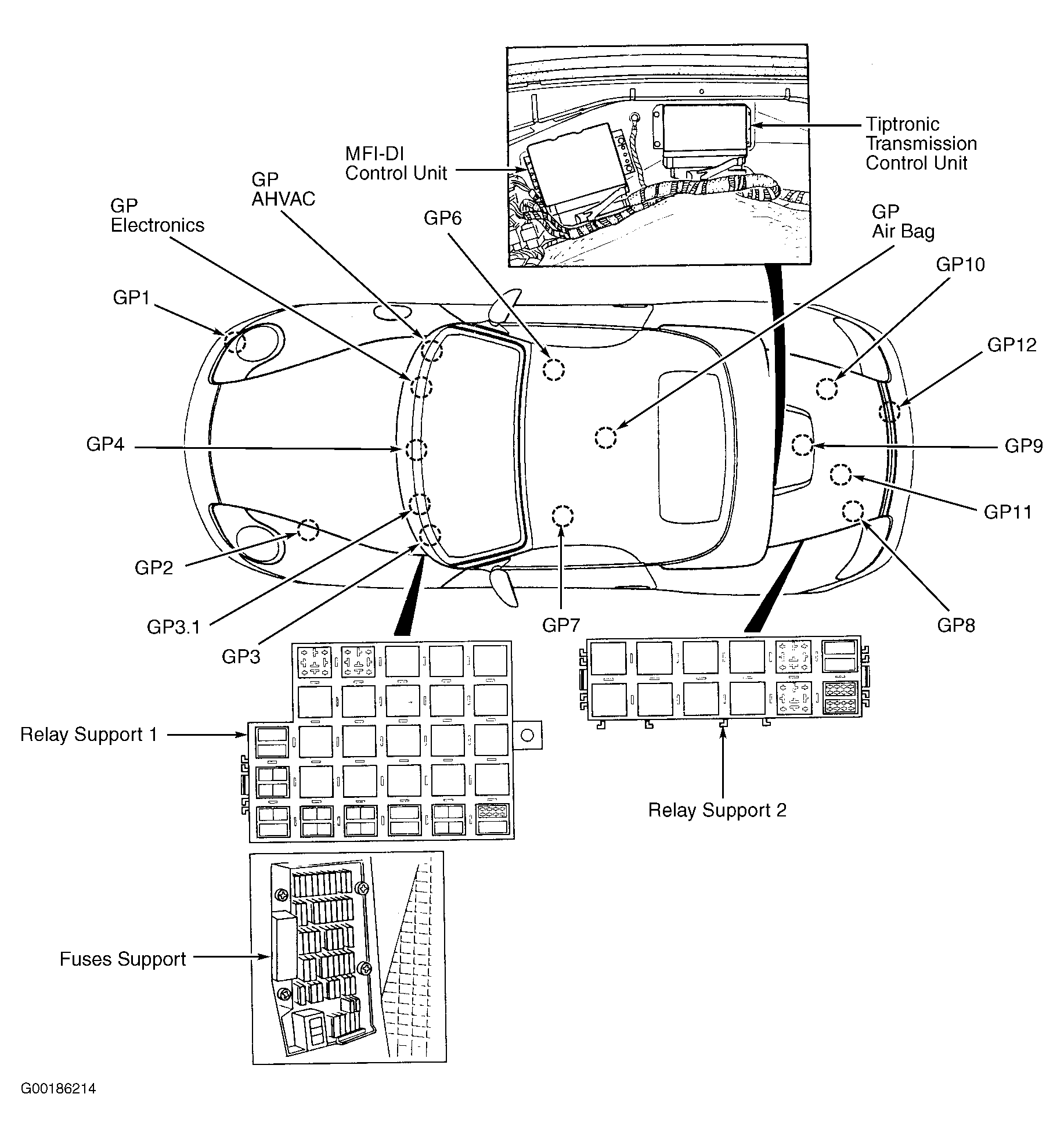

CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| Fuses Support |
Under left side of dash, at kick panel. See Figure
. |
| Relay Support 1 |
Under left side of dash, in footwell. See Figure
. |
| Relay Support 2 |
On left side of rear luggage compartment. See Figure
. |
