Removing And Installing Solenoid Hydraulic Valve: Installation

  1. Fit new solenoid valve. Screw in threaded screws by hand. The thread cut when the screw was screwed in for the first time must be found again. Tightening torque 3.7 + 0.15 Nm (2.7 + 0.10 ft.lb)

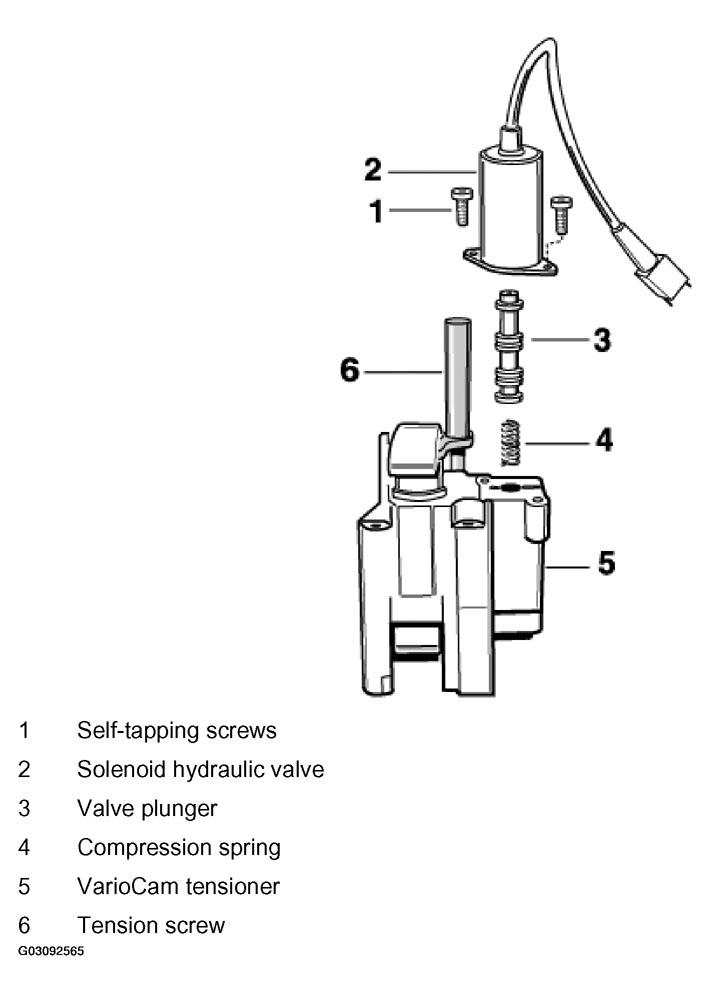

Fig 1: Fitting New Solenoid Valve
G03092565Courtesy of PORSCHE OF NORTH AMERICA, INC.
