Fitting vacuum control pipe on the intake distributor

Mount the vacuum control pipe between the fuel pressure regulator and the intake distributor at the left-hand rubber sleeve. Route the vacuum control pipe so that it is tension-free.

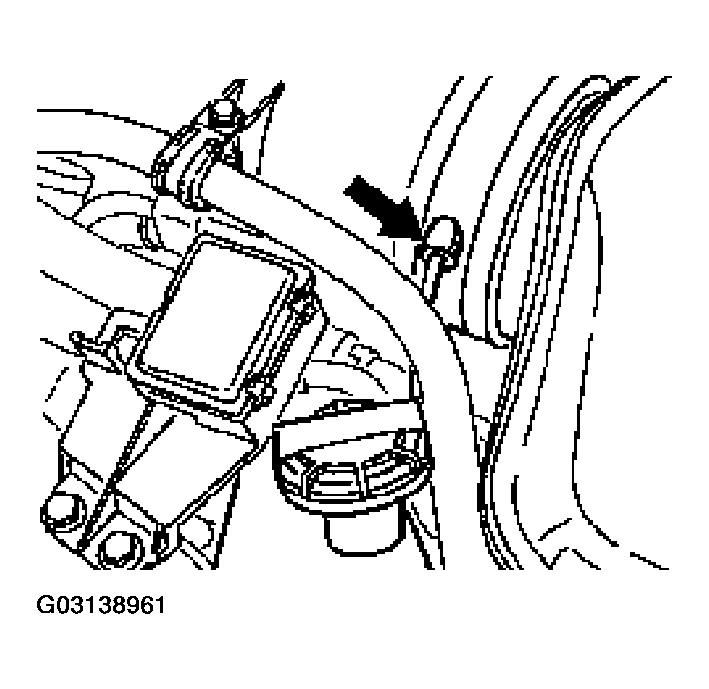

Fig 1: Mounting Vacuum Control Pipe Between Fuel Pressure Regulator And Intake Distributor

Courtesy of PORSCHE OF NORTH AMERICA, INC.
