Opening Instrument Cluster: Notes
- Remove adjusting knob for clock and daily trip mileage display.
- Remove sheetmetal braces from the fastening eyelets on the left and right.

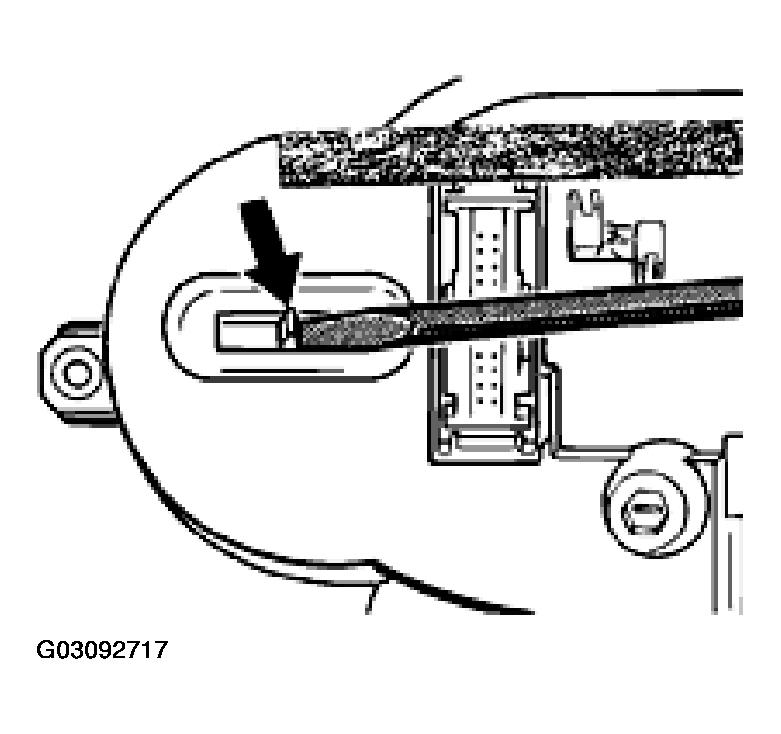

- Release the electronic unit on both sides with a screwdriver (do not tilt).
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Unclip the electronic unit at the bottom center. The released green guide tabs are held outwards with a screwdriver. The electronic unit is taken up off of the display unit evenly on alternate sides.
- Remove fastening clips (new version) on the indicator light housing and carefully remove the display unit from the front frame.
