Diagram of hose connections
Diagram of hose connections

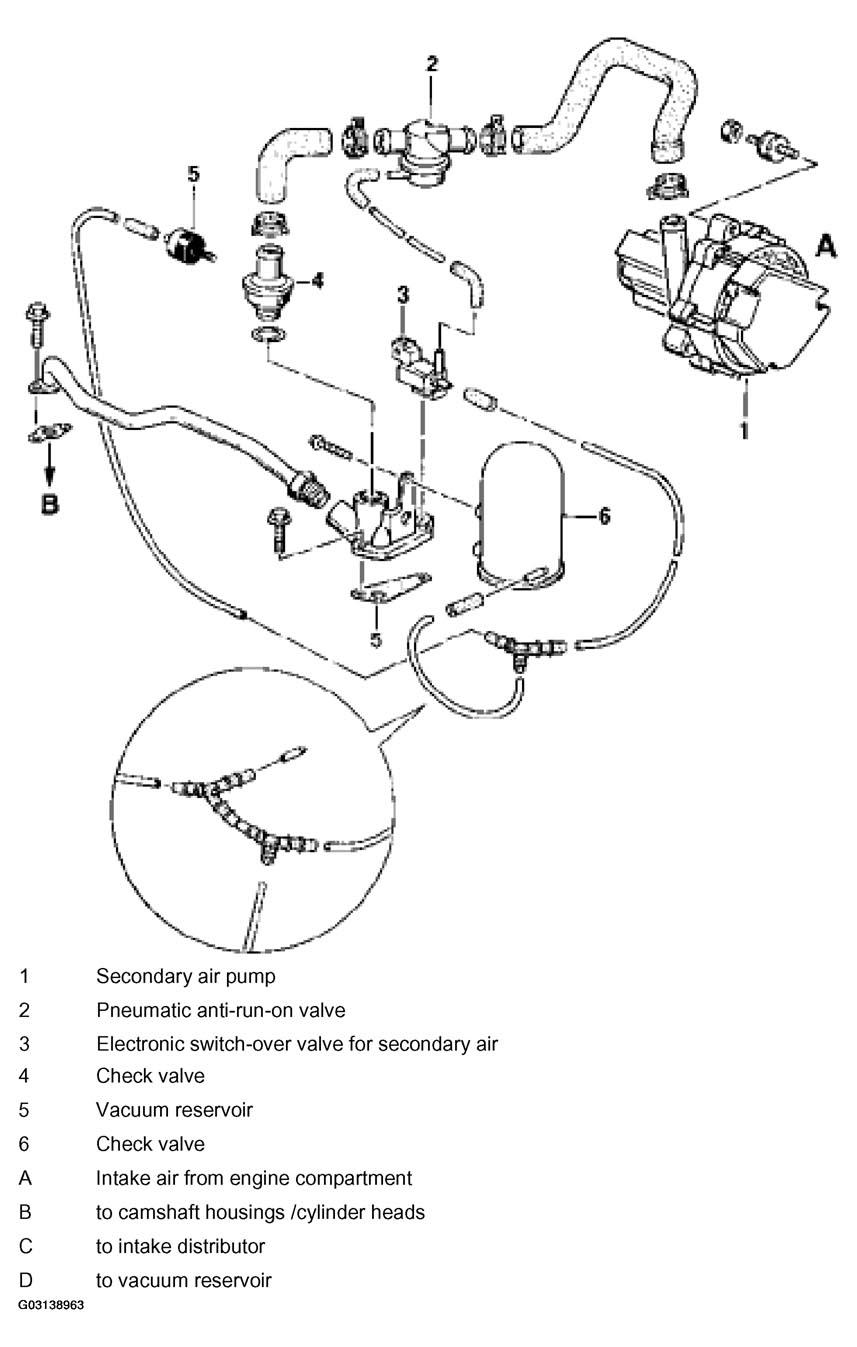

Fig 1: Secondary Air Injection Vacuum Diagram
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
