Diagnosis/troubleshooting - all turbo models

NOTE:
  • The DTC (diagnostic trouble code) covers all electrical faults here.

Diagnostic conditions

Possible cause of fault

Affected pins

DME control module connector II, pin 9 and oxygen sensor jack, bank 1, pin 5

DME control module connector II, pin 15 and oxygen sensor jack, bank 1, pin 1

DME control module connector II, pin 2 and pin 5

Diagnosis/troubleshooting

NOTE:
  • Do not use contact spray on the oxygen sensor plug connections as this may cause irreparable damage to the wiring (contamination of the oxygen sensor via the reference air channel).

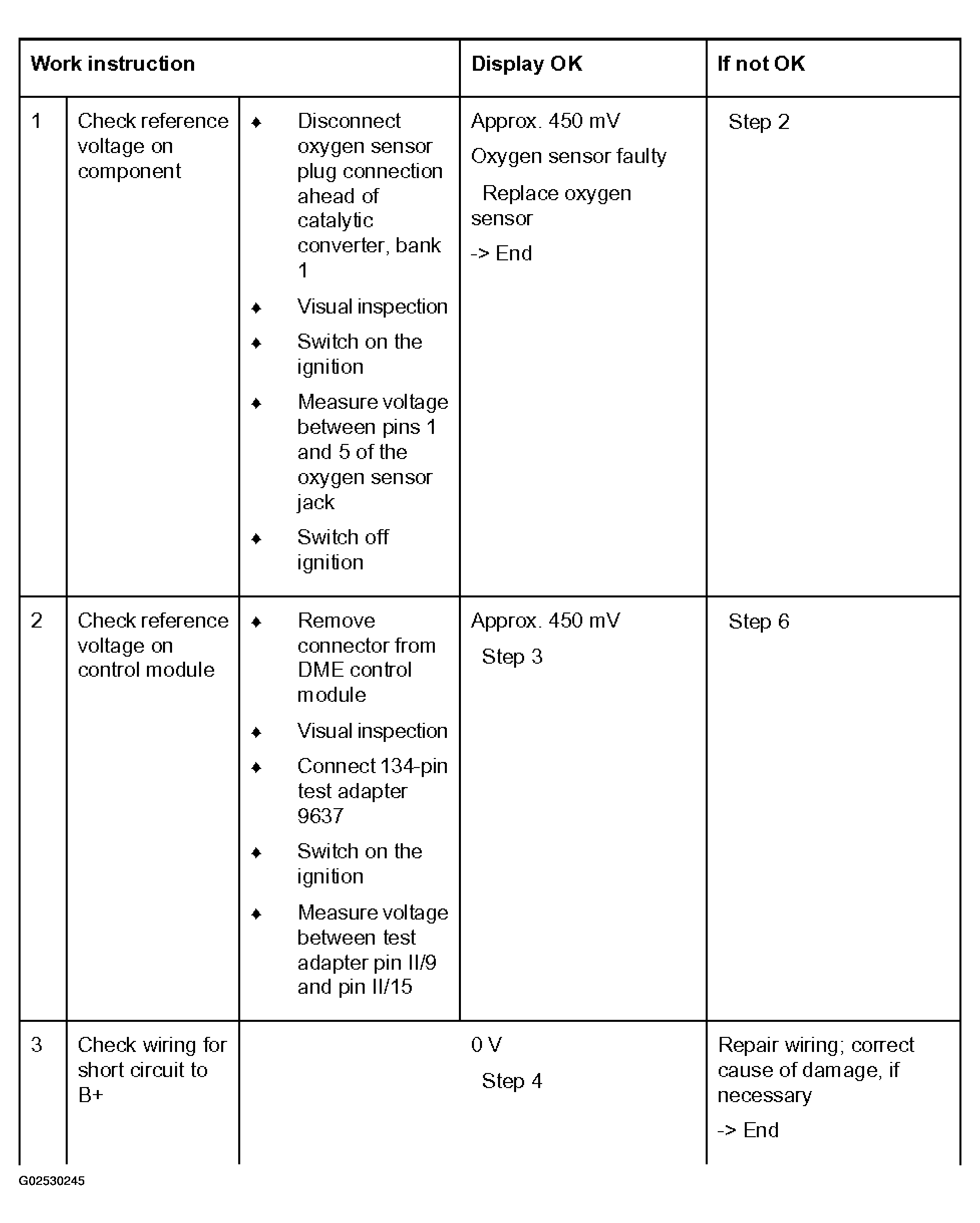

Fig 1: P0130 Work Instruction (All Turbo Models, Step 1 Through 3)
G02530245Courtesy of PORSCHE OF NORTH AMERICA, INC.

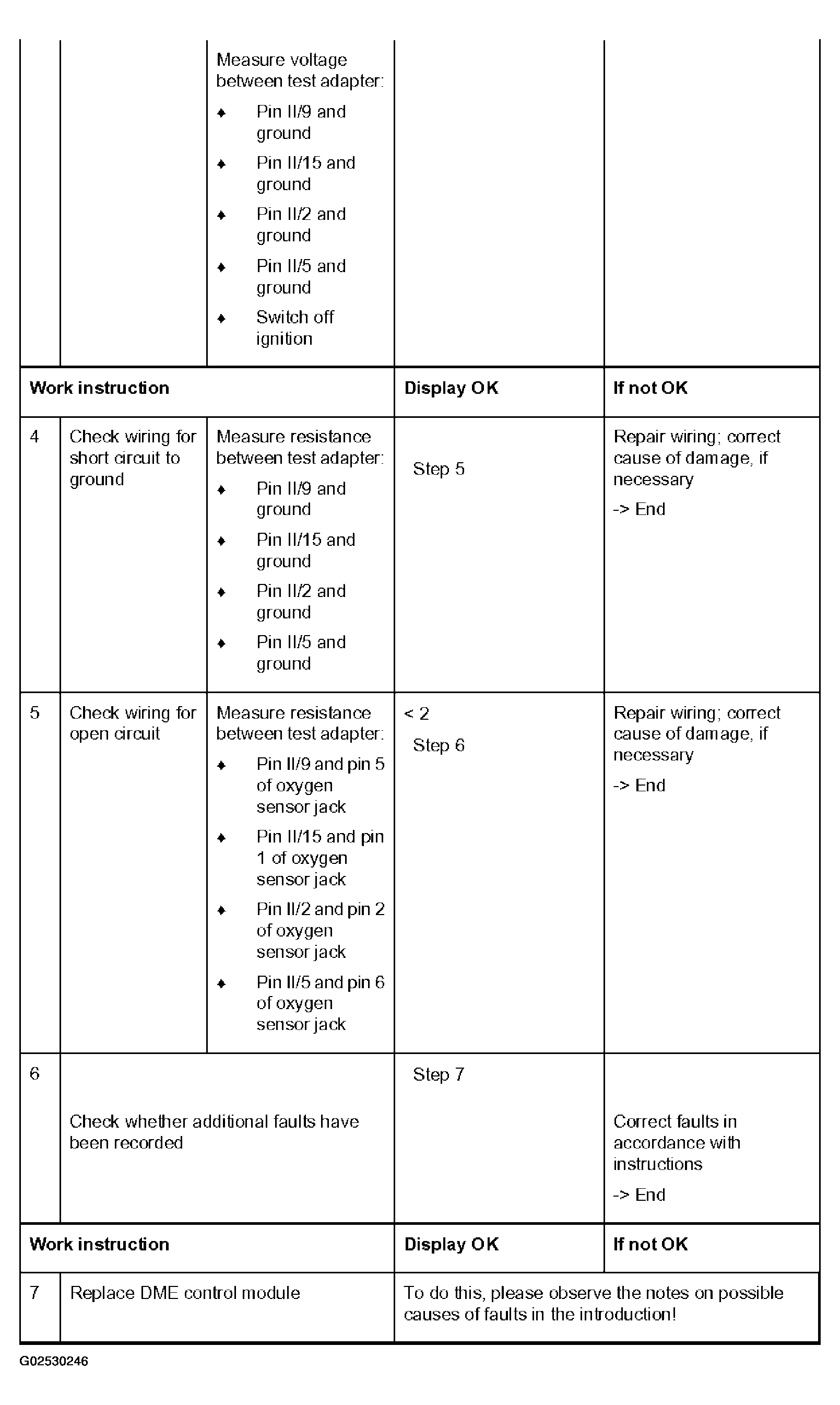

Fig 2: P0130 Work Instruction (All Turbo Models, Step 4 Through 7)
G02530246Courtesy of PORSCHE OF NORTH AMERICA, INC.
