Pcm2/CDR23 - Man Machine Interface
›
MMI function control modules
›
Functions of the components
Functions of the components

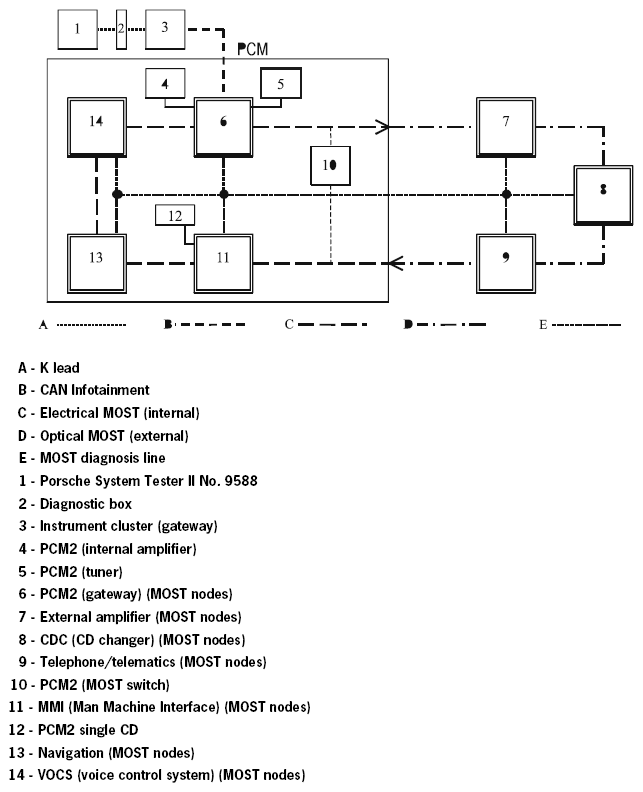

Fig 1: Components Function Diagram
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
