Placing In Service Position

To place lock mount in service position, refer to illustrations. See Fig 1 -Fig 5 .

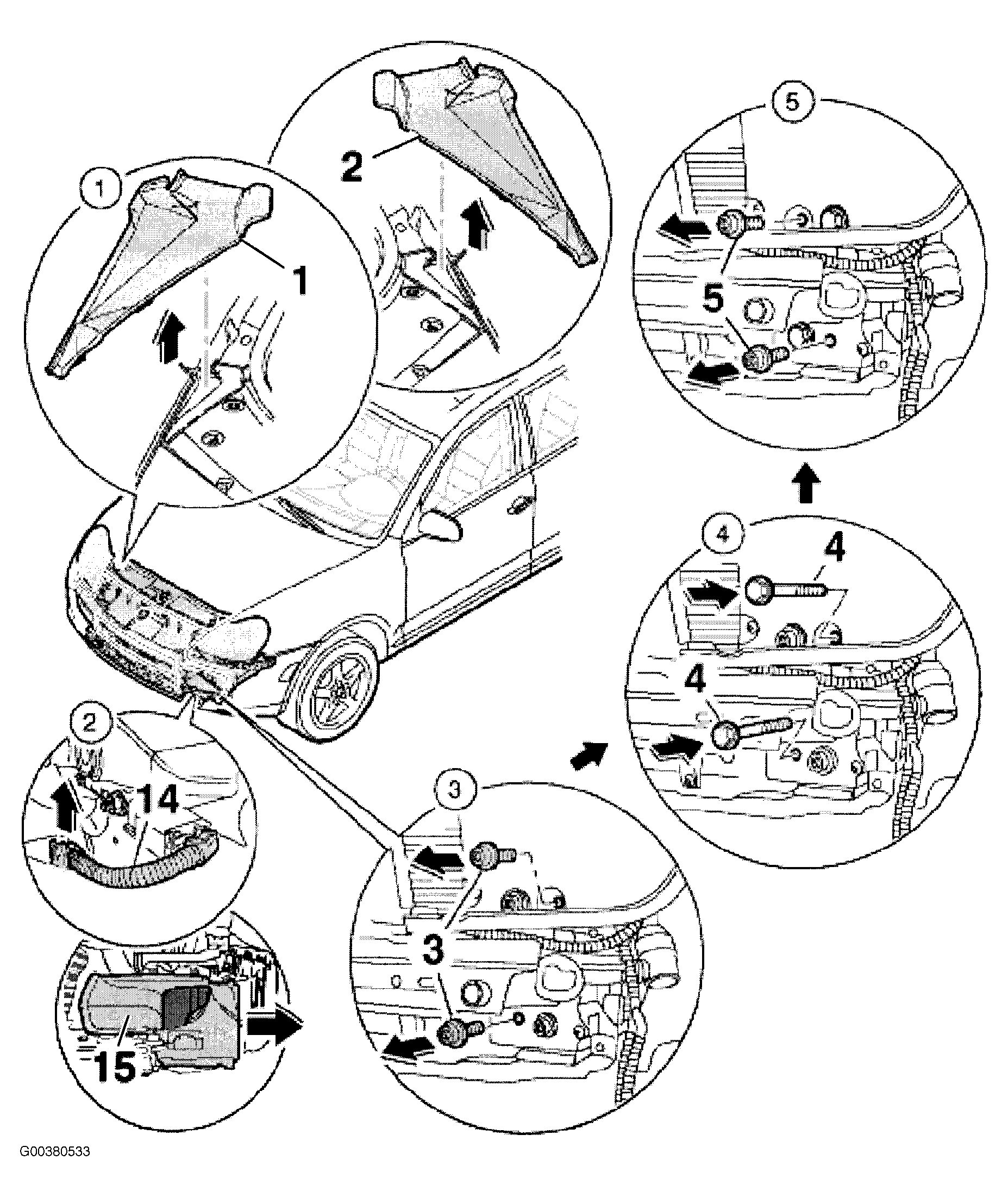

Fig 1: Placing Lock Mount Into Service Position (1 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

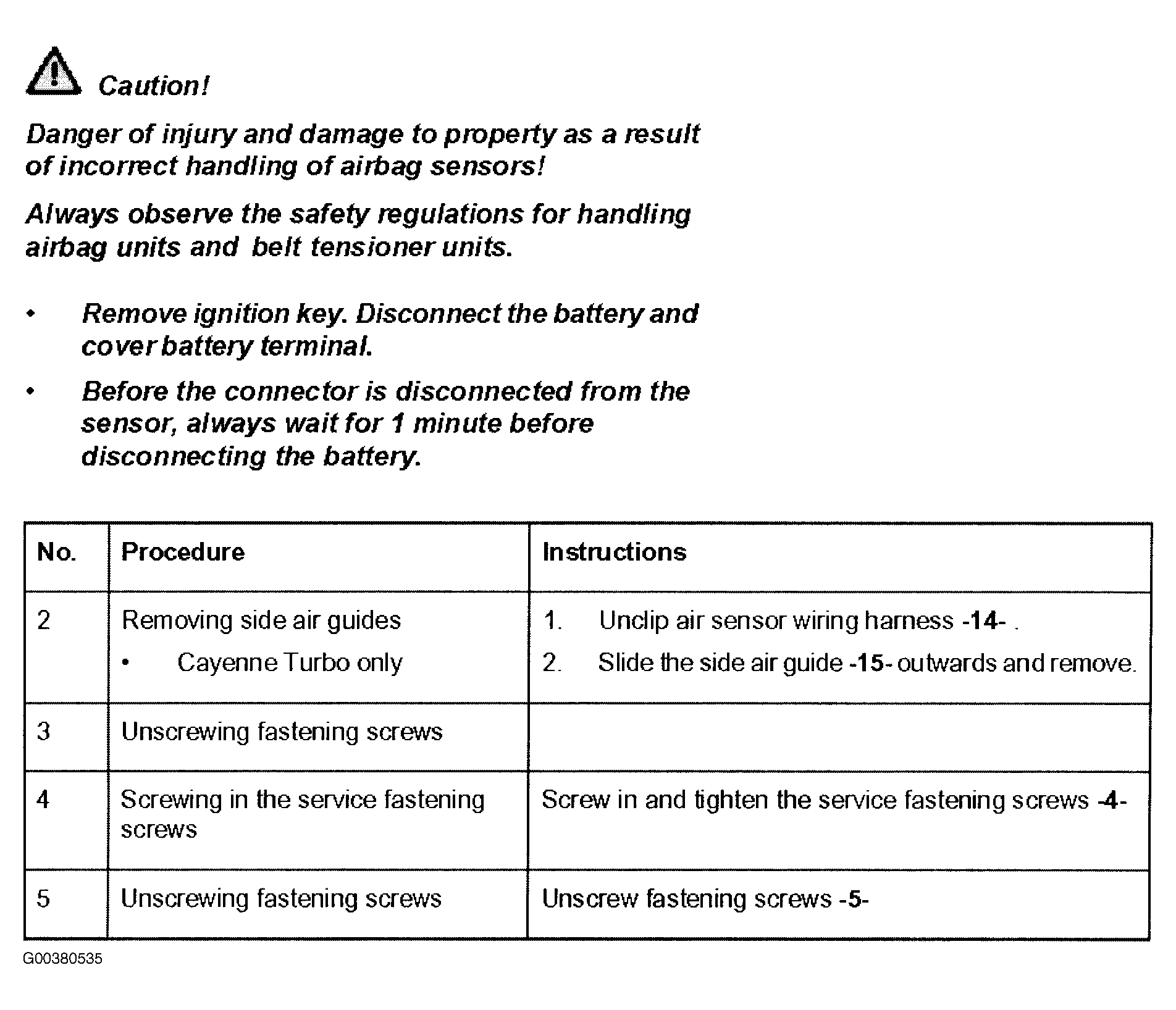

Fig 2: Placing Lock Mount Into Service Position (2 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

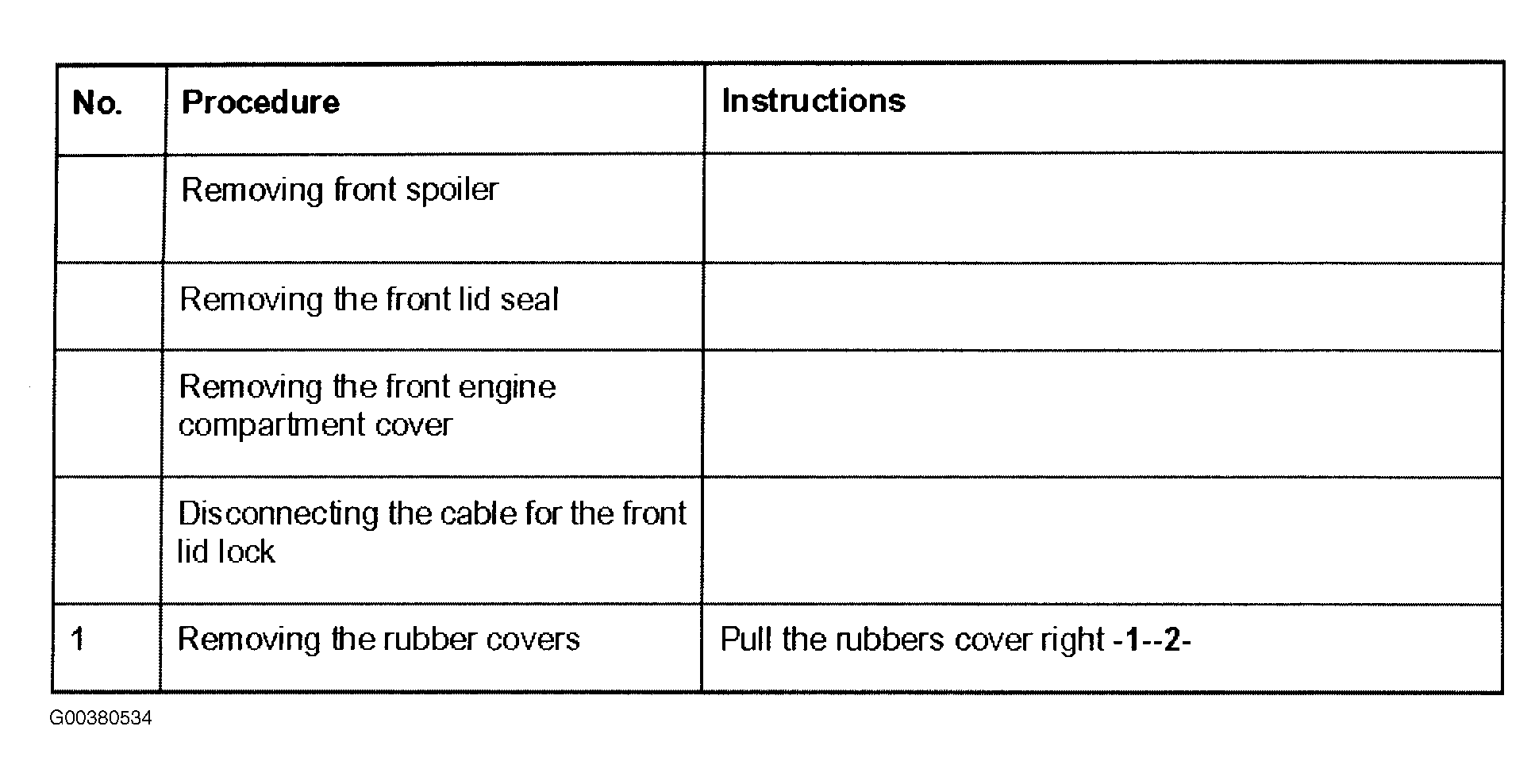

Fig 3: Placing Lock Mount Into Service Position (3 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

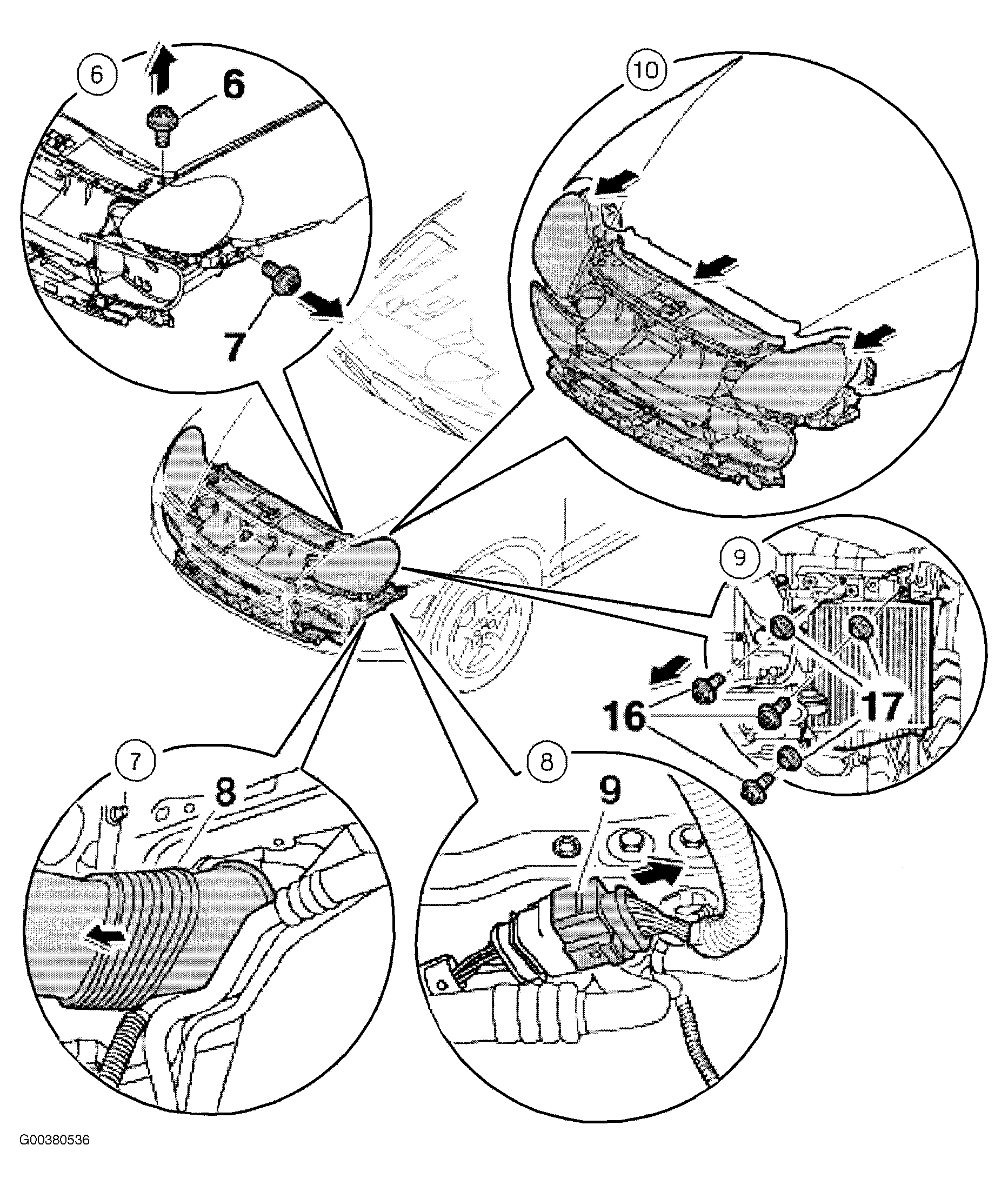

Fig 4: Placing Lock Mount Into Service Position (4 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

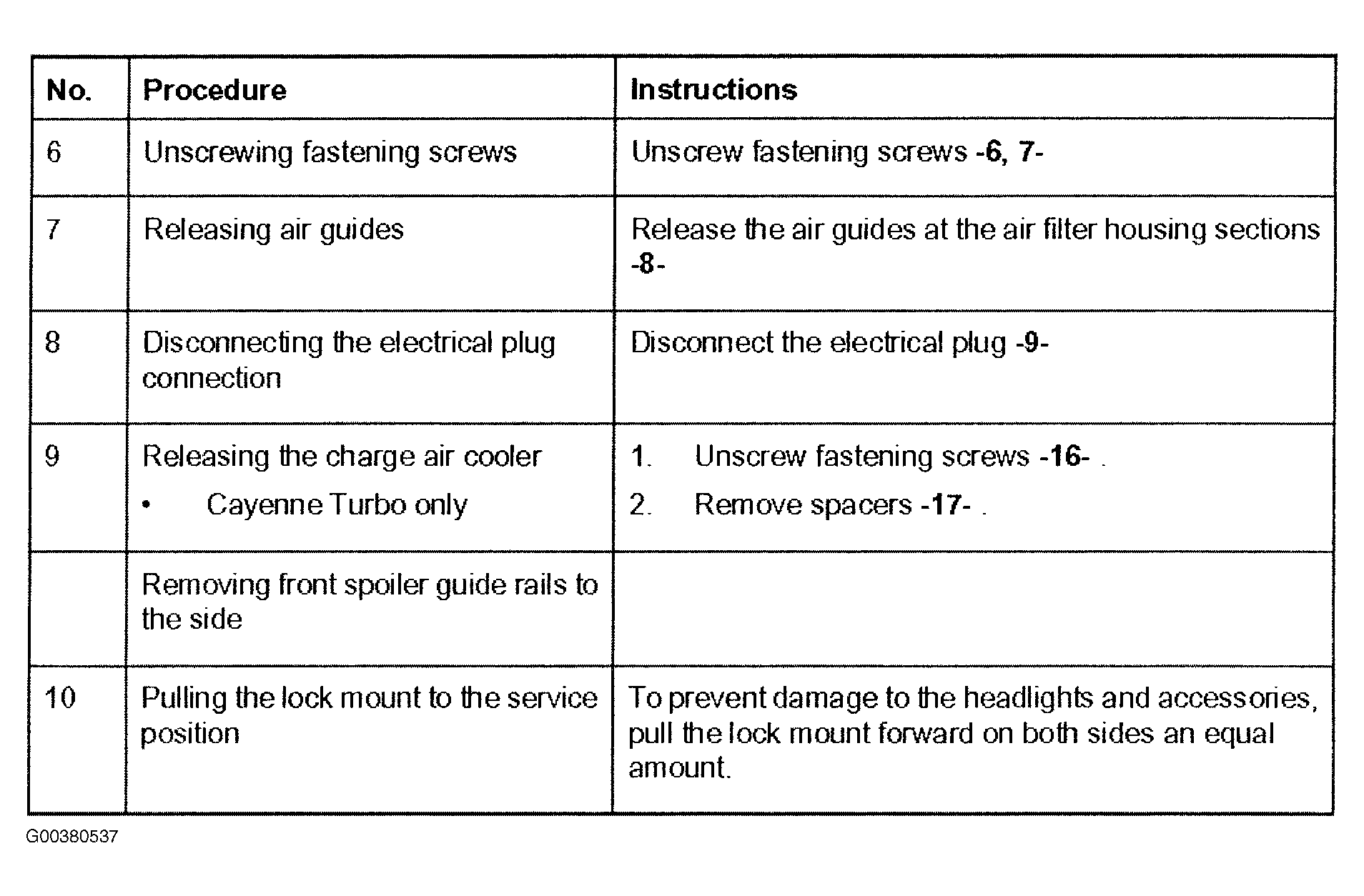

Fig 5: Placing Lock Mount Into Service Position (5 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
