TIPTRONIC -- Diagnostics
›
Fault code P0841
›
Diagnosis/troubleshooting G 0210
›
Notes
Diagnosis/troubleshooting G 0210: Notes
Wiring diagram of transmission oil pressure switch 1

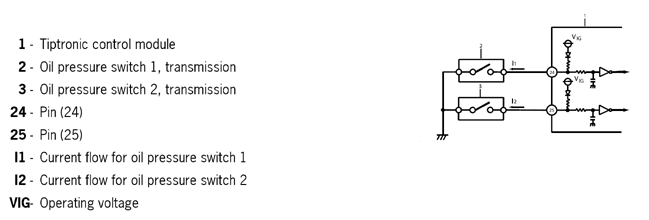

Fig 1: Wiring Diagram Of Transmission Oil Pressure Switch 1
Courtesy of PORSCHE OF NORTH AMERICA, INC.
