Drive Belt Routing

CAUTION: Never remove drive belt when belt is hot. This will cause drive belt to become deformed and require replacement.

Serpentine belt is self-adjusting. See Fig 1 or Fig 2 .

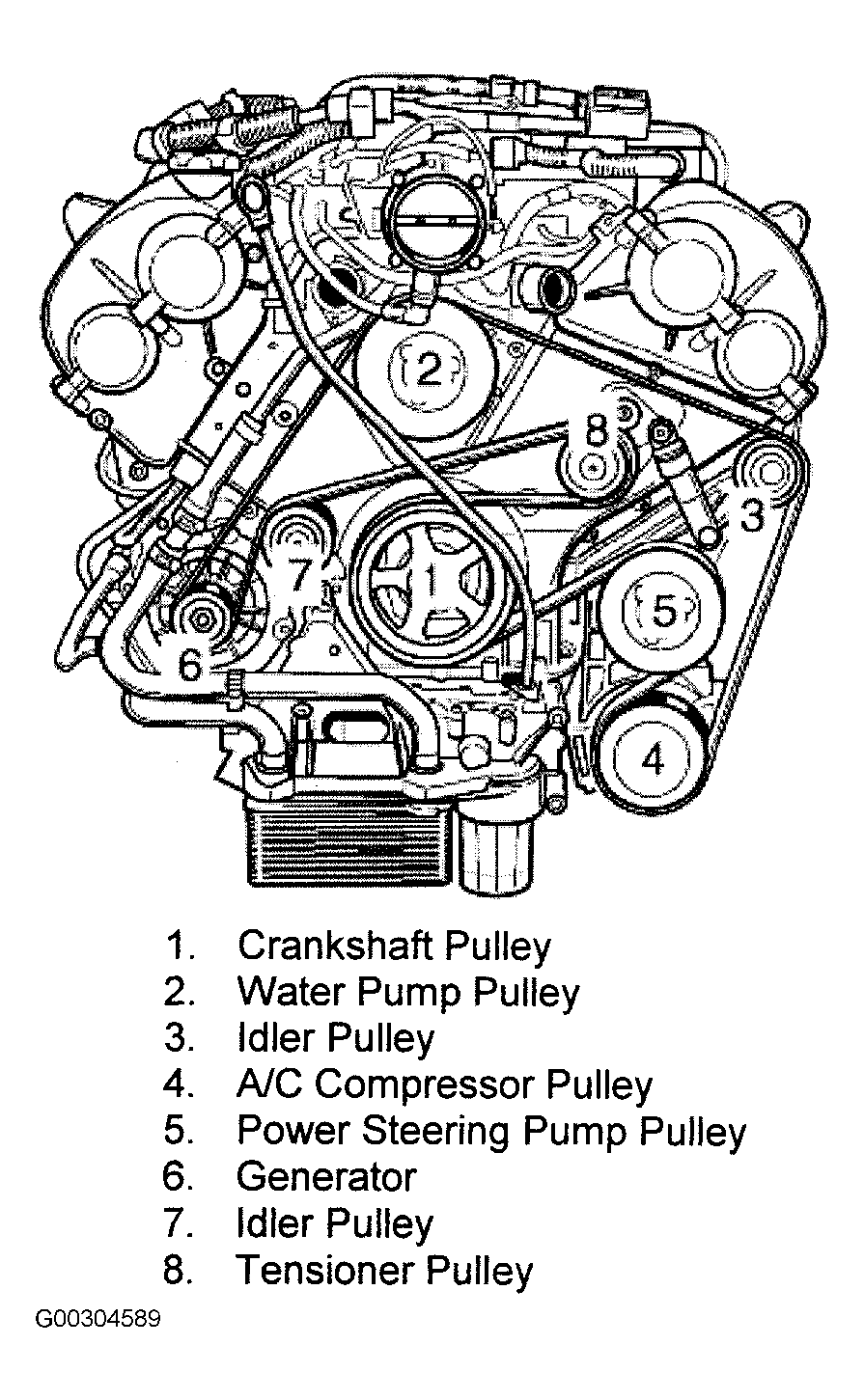

Fig 1: Drive Belt Routing (3.2L V6)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

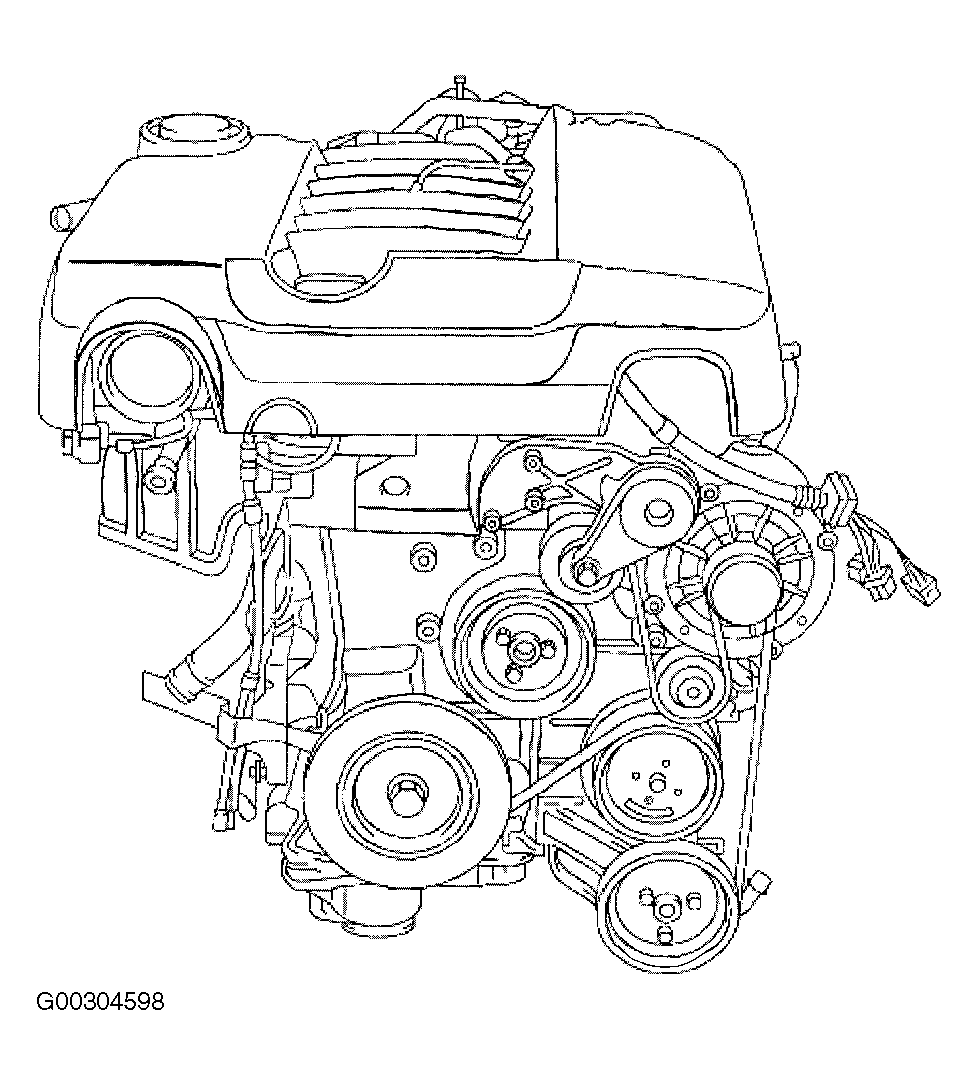

Fig 2: Drive Belt Routing (4.5L V8)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
