Installing ignition switch

Fig 1: Connecting electric plug

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Connect plug on ignition switch until it clicks into place.

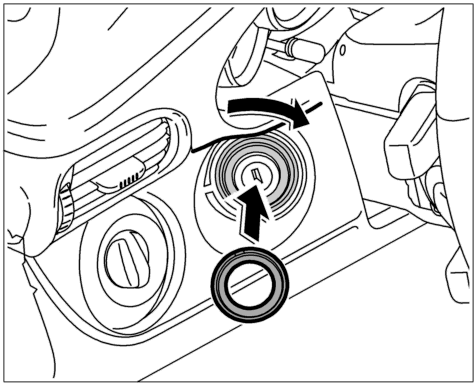

Fig 2: Turning union nut on ignition switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Position ignition switch in the instrument panel from below. Position union nut, re-adjust switch and tighten union nut using wrench T10152 . → Tightening torque: 1.1 ftlb.

3. Place cover in position and slide it over the ignition switch, paying attention to the fitted shape.
