Engine Compartment: Notes

Fuses are located internally in E Box fuse support. See COMPONENT LOCATIONS .

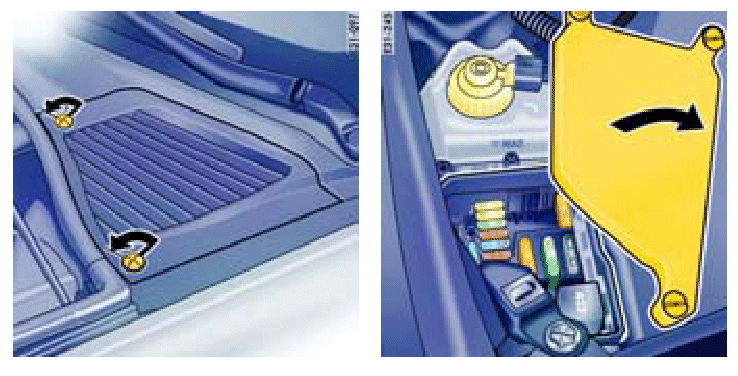

Fig 1: Accessing E Box

Courtesy of PORSCHE OF NORTH AMERICA, INC.

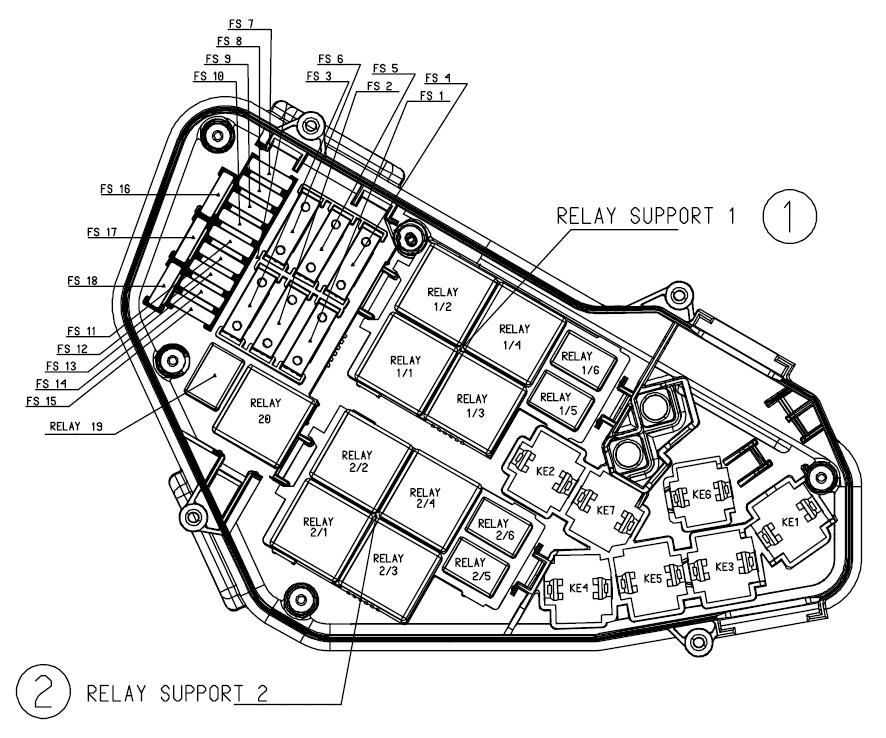

Fig 2: Identifying E Box Fuses & Relays

Courtesy of PORSCHE OF NORTH AMERICA, INC.
