Power Distributor

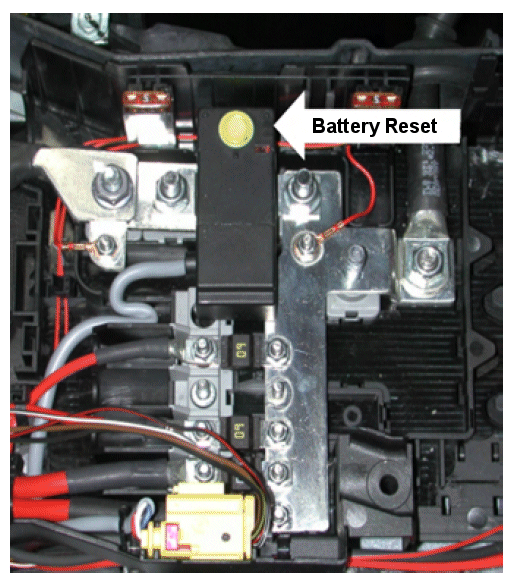

Power distributor is located over vehicle electrical system battery. Vehicle electrical system battery is located below driver's front seat. See COMPONENT LOCATIONS .

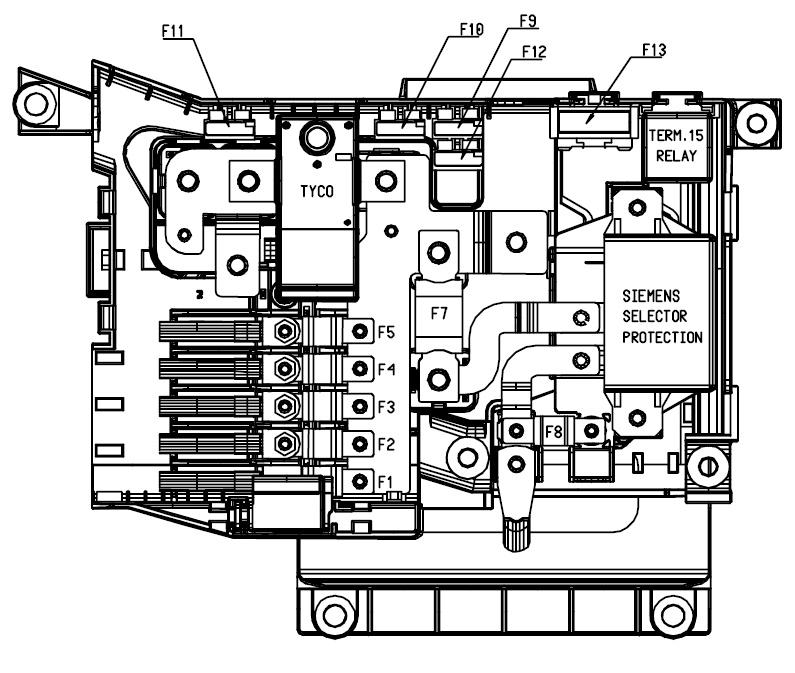

POWER DISTRIBUTOR IDENTIFICATION
| Fuse No. | Amperage | Circuit Protected |
|---|---|---|
| 1 | 150 | Left Fuse Box |
| 2 | 150 | Right Fuse Box |
| 3 | 60 | Right Fuse Box |
| 4 | 40 | Rear A/C Fan |
| 5 | 60 | Terminal 15 Relay |
| 6 | - | Not Used |
| 7 | 250 | Charging Relay |
| 8 | - | Not Used |
| 9 | 5 | Measure Signal, Vehicle Electrical System CU |
| 10 | - | Not Used |
| 11 | - | Not Used |
| 12 | - | Reserve |
| 13 | - | Not Used |
| 14 | - | Not Used |
