Installing AWS Control Unit

  1. Switch off ignition and remove ignition key.

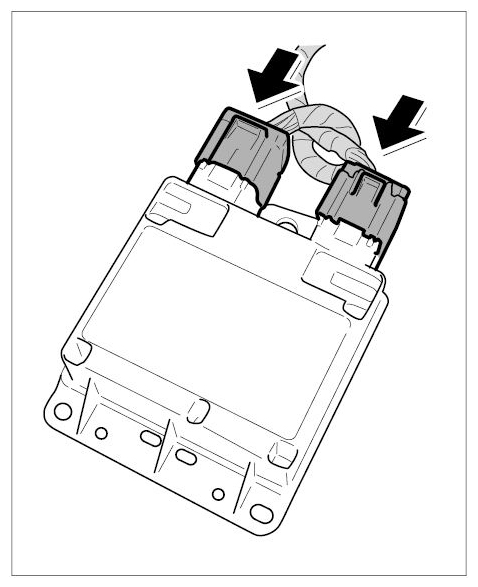

  2. Connect the two electric connectors to the control unit until they are felt to engage.
    Fig 1: Plugging In Electric Connectors
    G09412966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

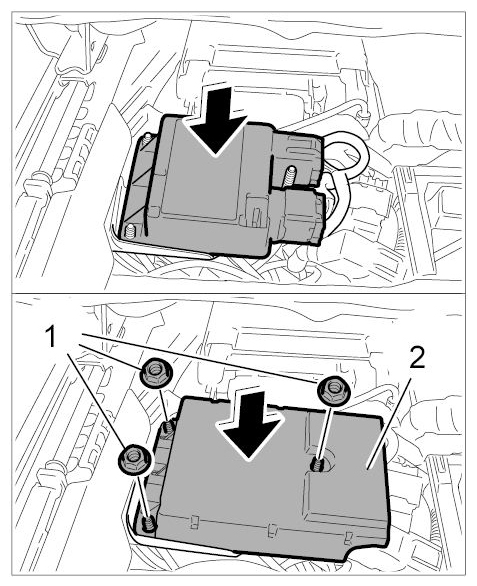

  3. Place AWS control unit on the support, position cover -2-  and secure with the three fastening nuts -1-  .
    Fig 2: Positioning AWS Control Unit Cover
    G09412967Courtesy of PORSCHE CARS NORTH AMERICA, INC.
