Removing Front Power Windows

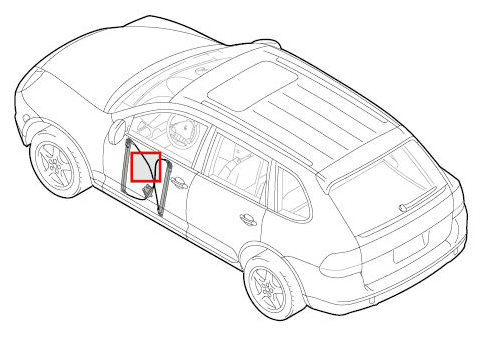

Fig 1: Identifying Front Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

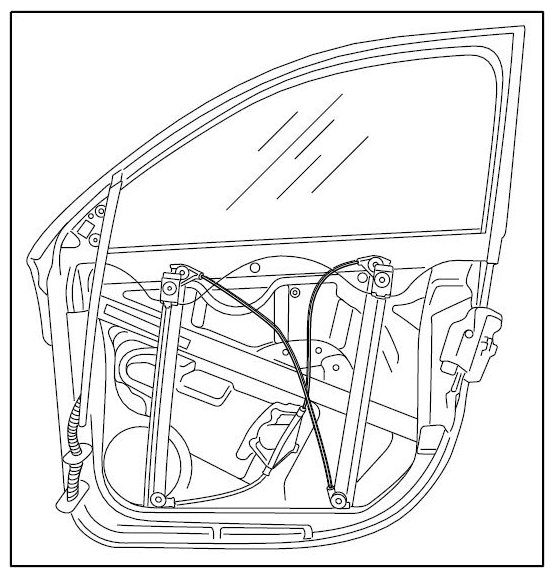

Fig 2: Removing Front Power Windows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Removing power windows
   1. 1.1. Unclip cable at retaining clip -4-  .

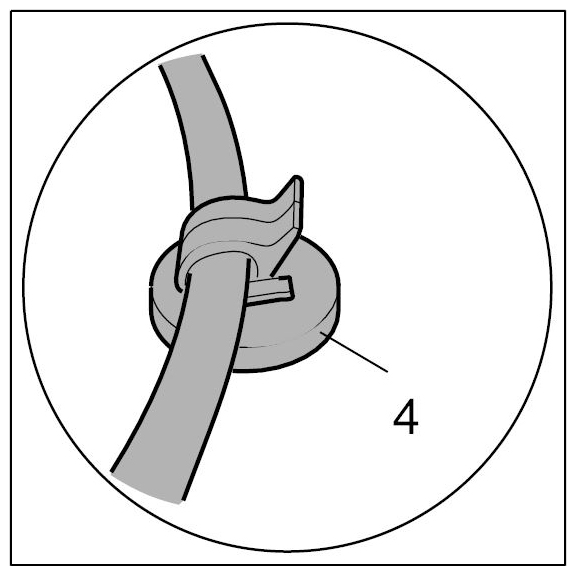

      Fig 3: Identifying Retaining Clip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Drill out pop rivets -1-  on guide rails -2-  .
   3. 1.3. Unclip power window gear -3-  from the door unit carrier and remove the power window.

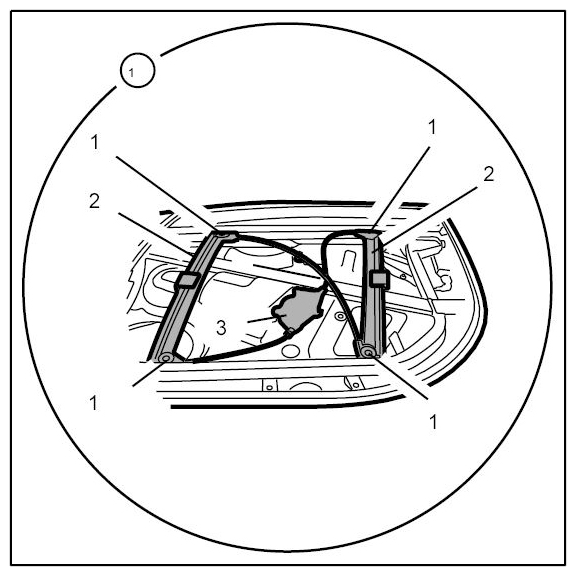

      Fig 4: Identifying Pop Rivets, Guide Rails, Power Window Gear

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
