Installing Side Airbag

Information

If a new component (e.g. sensor, airbag control unit, airbag unit) of the airbag system has to be installed, the new component will be supplied with a barcode sticker (tear-off label).

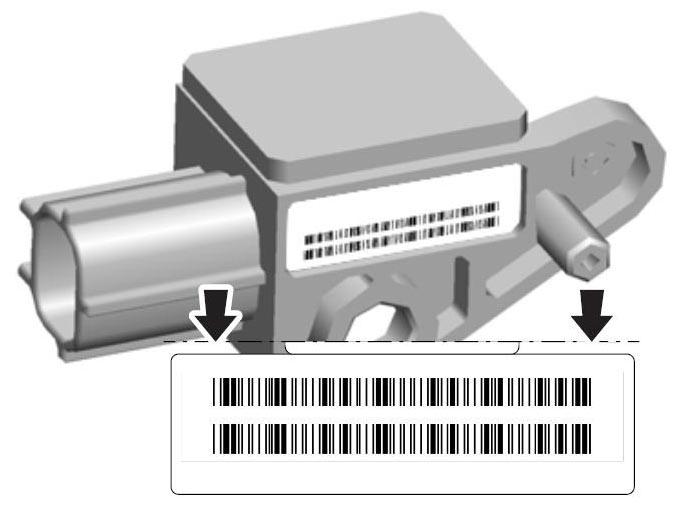

Fig 1: Identifying Airbag Sensor Tear-Off Label

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• Tear off the tear-off label -2- on the new component -1- and stick it in the Warranty and Maintenance booklet under the heading Proof of airbag system check/component replacement.

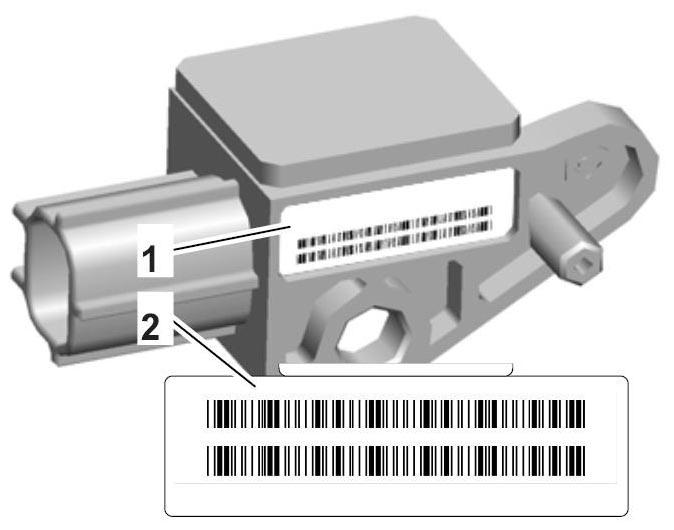

  Fig 2: Identifying Tear-Off Label

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• The replacement date and current mileage must be documented and the booklet must be stamped with the Centre's stamp.

1. Swivel in side airbag -arrow A-  , ensuring that both the holding straps -arrows-  engage in the guides.

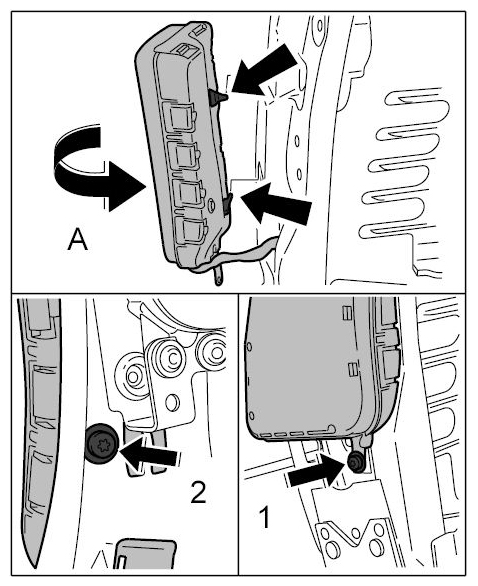

   Fig 3: Installing Side Airbag

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw down side airbag at the inside -arrow 2-  and outside -arrow 1-  . → Tightening torque: 4.5 Nm (3.5 ft lbs.)
   Fig 4: Installing Side Airbag

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fold down backrest cushion underneath the side airbag -arrow A-  .

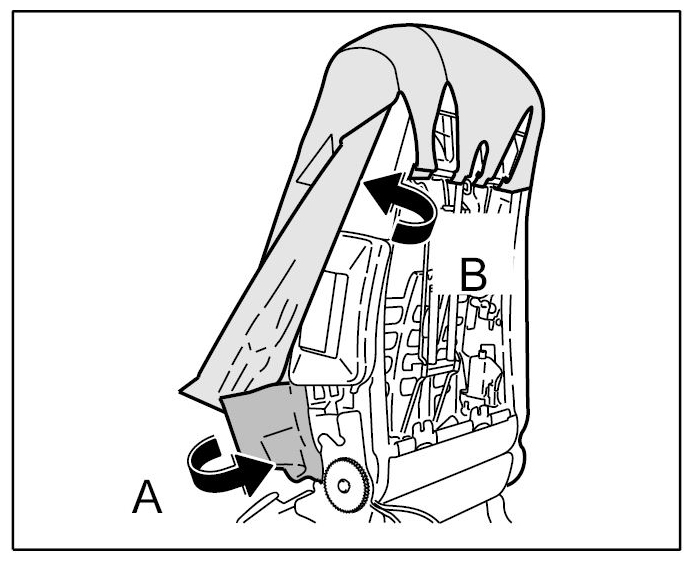

   Fig 5: Fastening Backrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Pull backrest cover towards the rear and press cushion down. Then attach the backrest cover to the backrest frame -arrow B-  .
   Fig 6: Fastening Backrest Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Guide side airbag wiring harness through the backrest frame. Make sure that the two connectors are not damaged when you do this.

   Information

   • Ensure that the tie-wrap is installed correctly as it can impact on the backrest frame and hinder installation of the protective cover.
6. Fit protective cover on wiring harness and fasten it with a commercially available tie-wrap -arrow A-  . Push protective cover upwards -arrow B-  and install.

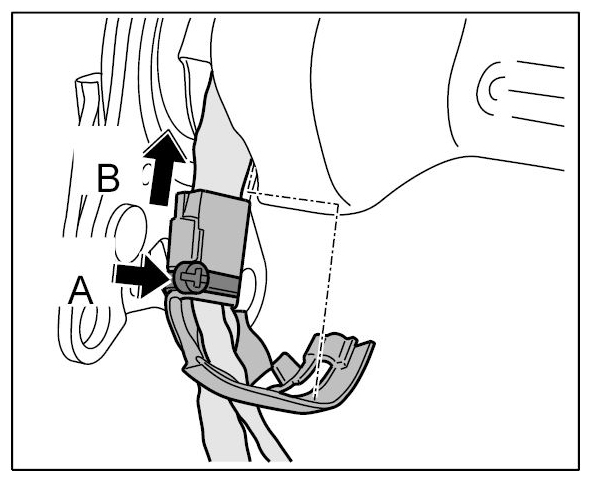

   Fig 7: Installing Protective Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
