Mode 6 - PORSCHE
›
Mode 6 Data 2005
Mode 6 Data 2005

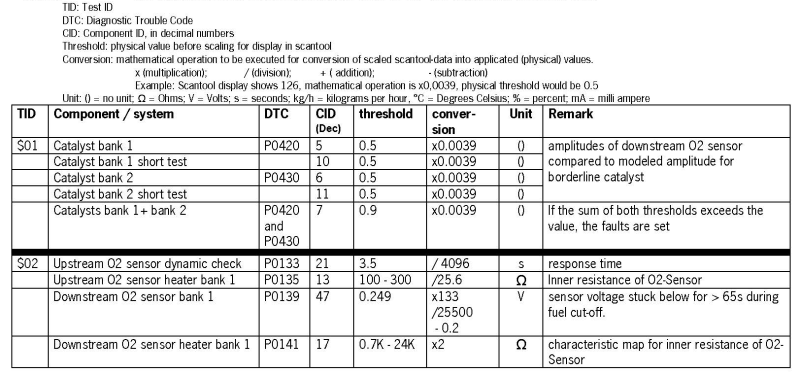

Fig 1: 911 (997) & Boxster (987) - 2005 (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

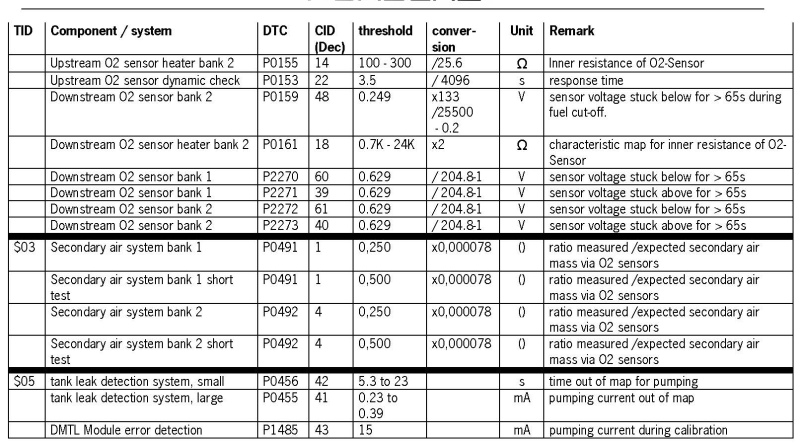

Fig 2: 911 (997) & Boxster (987) - 2005 (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

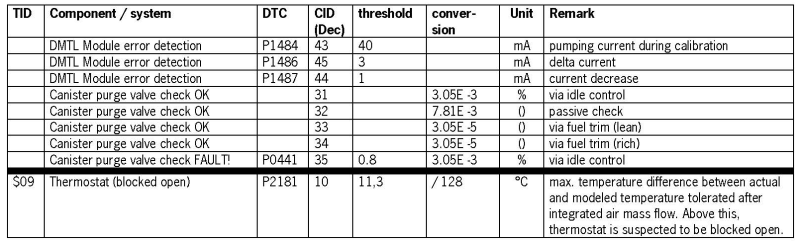

Fig 3: 911 (997) & Boxster (987) - 2005 (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
