Mode 6 - PORSCHE
›
Mode 6 Data 2010-12
Mode 6 Data 2010-12

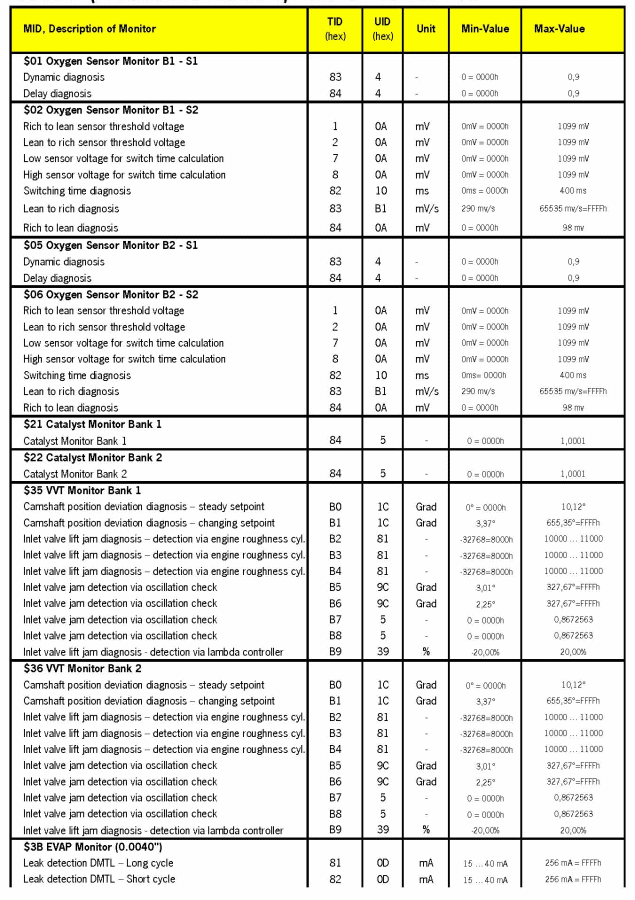

Fig 1: 911 (997) - 2010-12 & Boxster (987) - 2011-12 (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

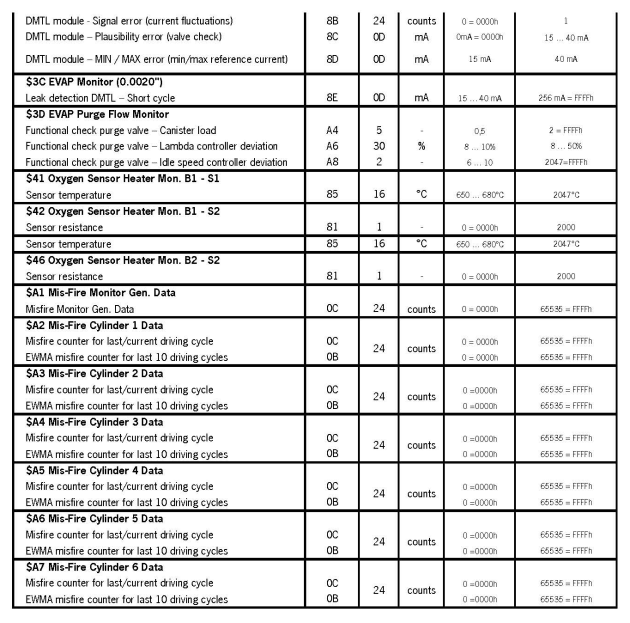

Fig 2: 911 (997) - 2010-12 & Boxster (987) - 2011-12 (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
