Mode 6 - PORSCHE
›
Mode 6 Data 2010
Mode 6 Data 2010

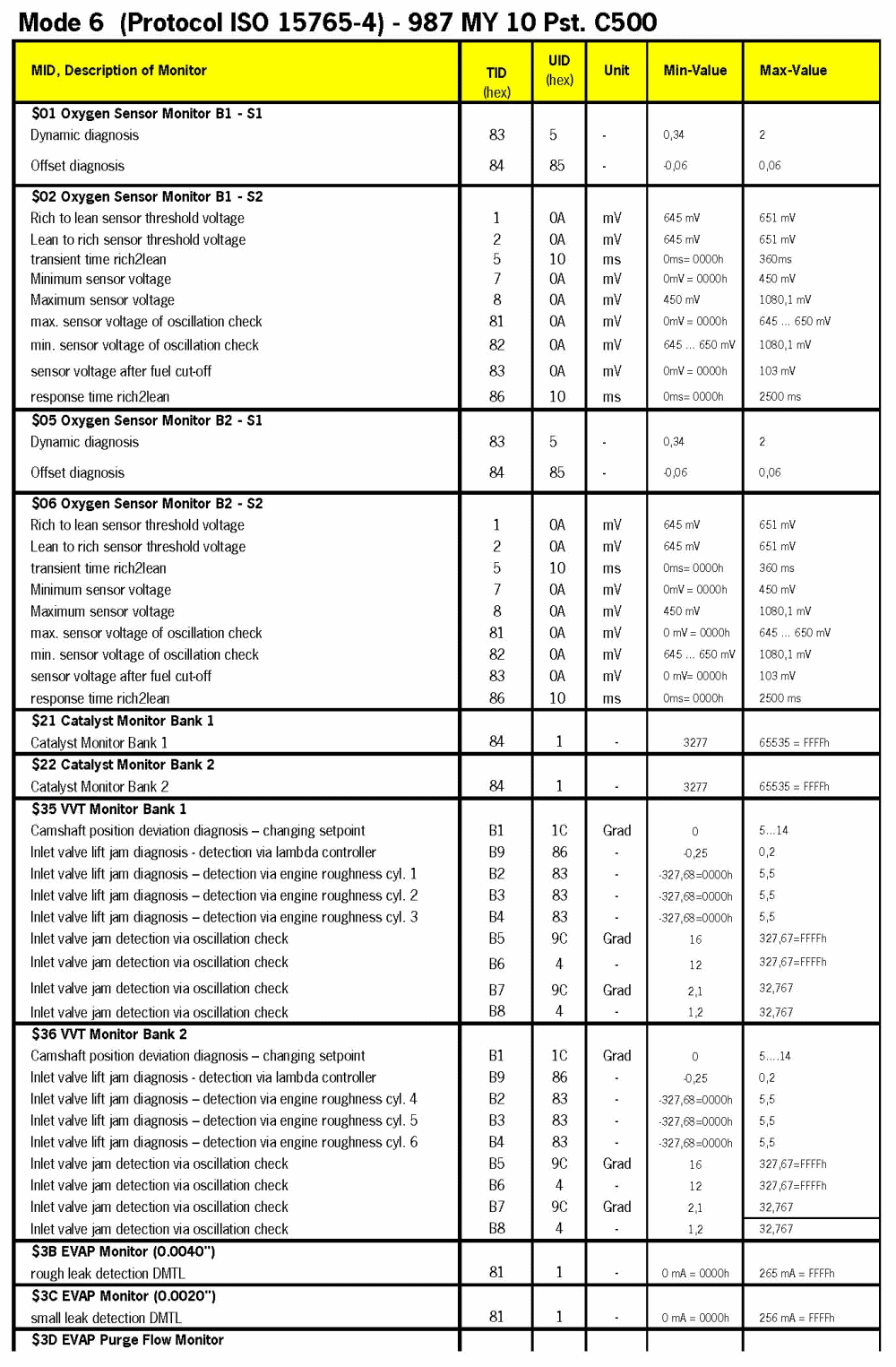

Fig 1: Boxster (987) - 2010 (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

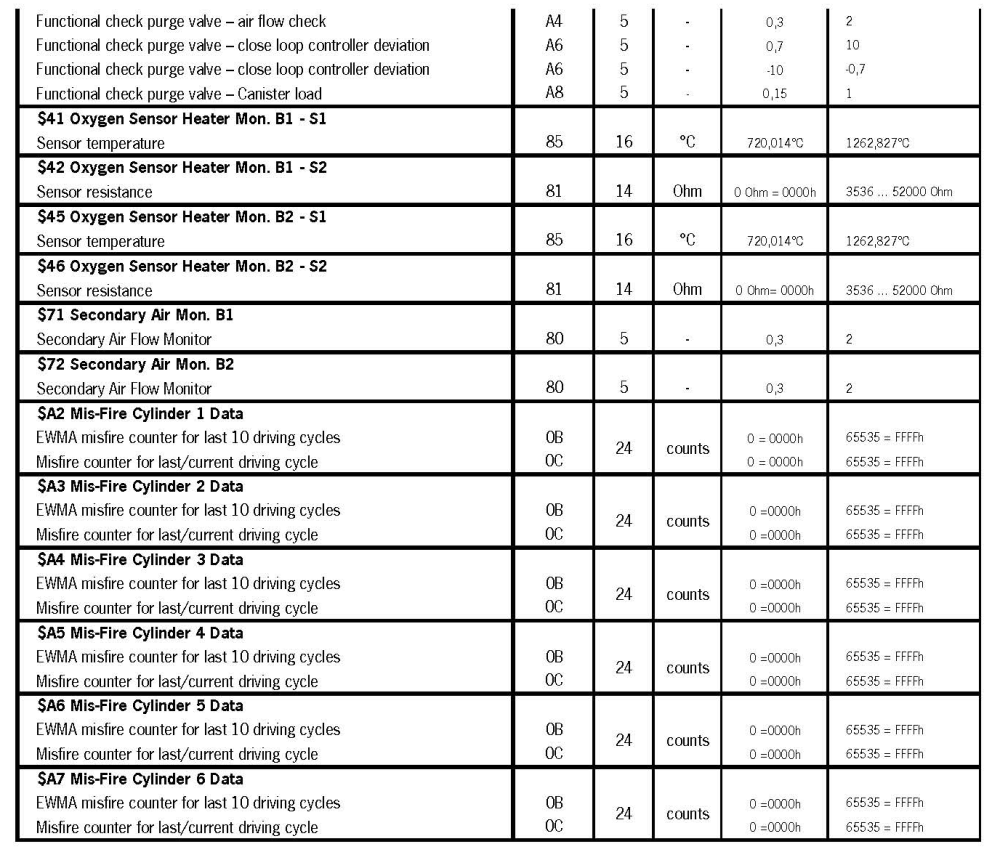

Fig 2: Boxster (987) - 2010 (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
