Mode 6 - PORSCHE
›
Mode 6 Data 2013
Mode 6 Data 2013

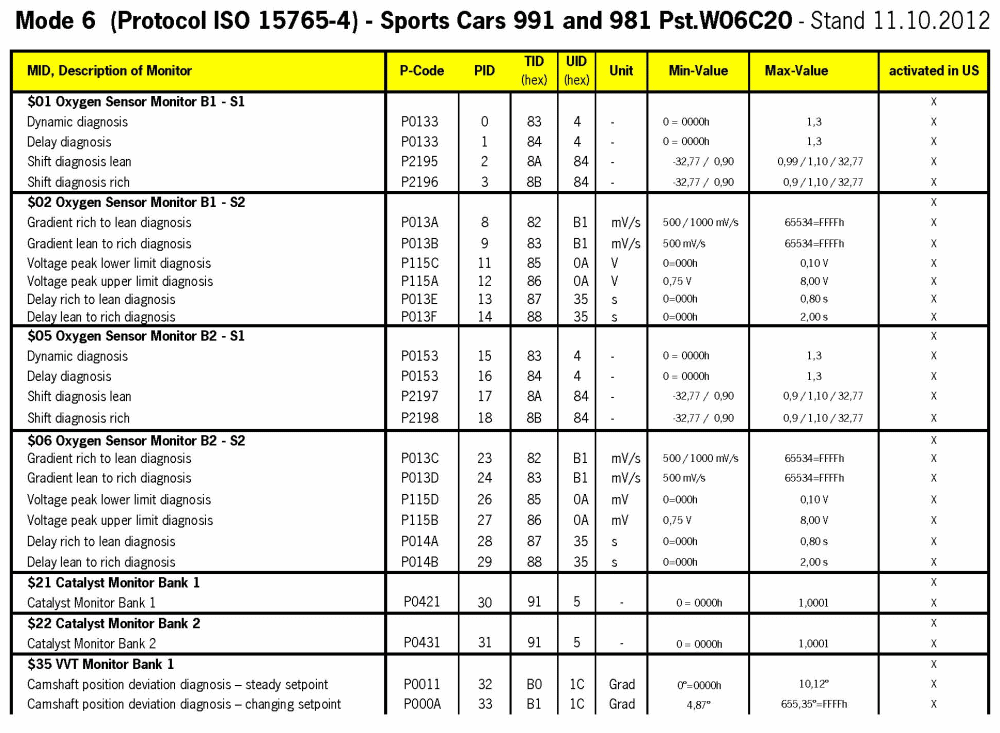

Fig 1: 911 (991) & Boxster (981) - 2013 (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

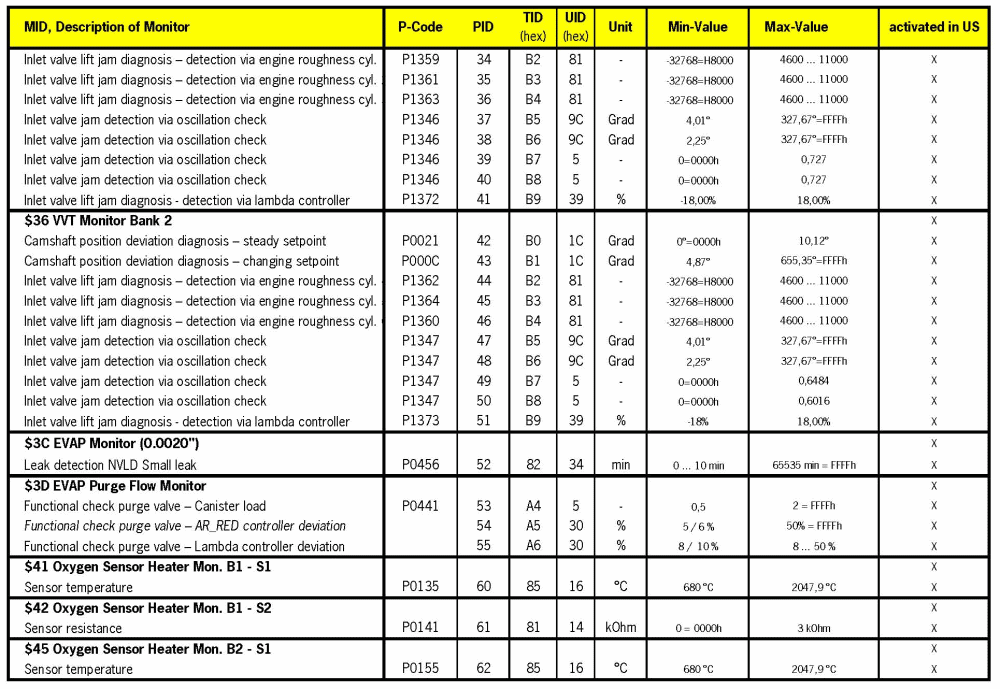

Fig 2: 911 (991) & Boxster (981) - 2013 (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

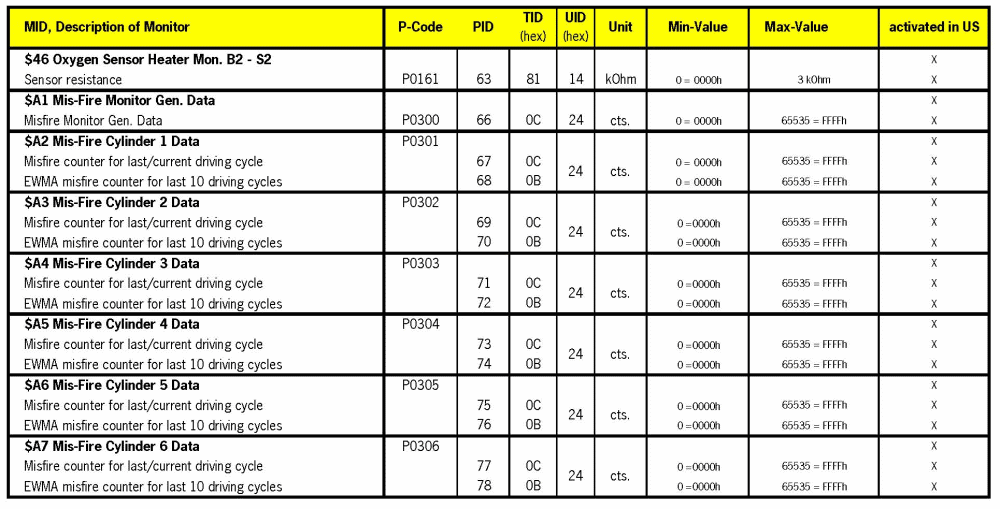

Fig 3: 911 (991) & Boxster (981) - 2013 (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
