Mode 6 - PORSCHE
›
Mode 6 Data 2014-16
Mode 6 Data 2014-16

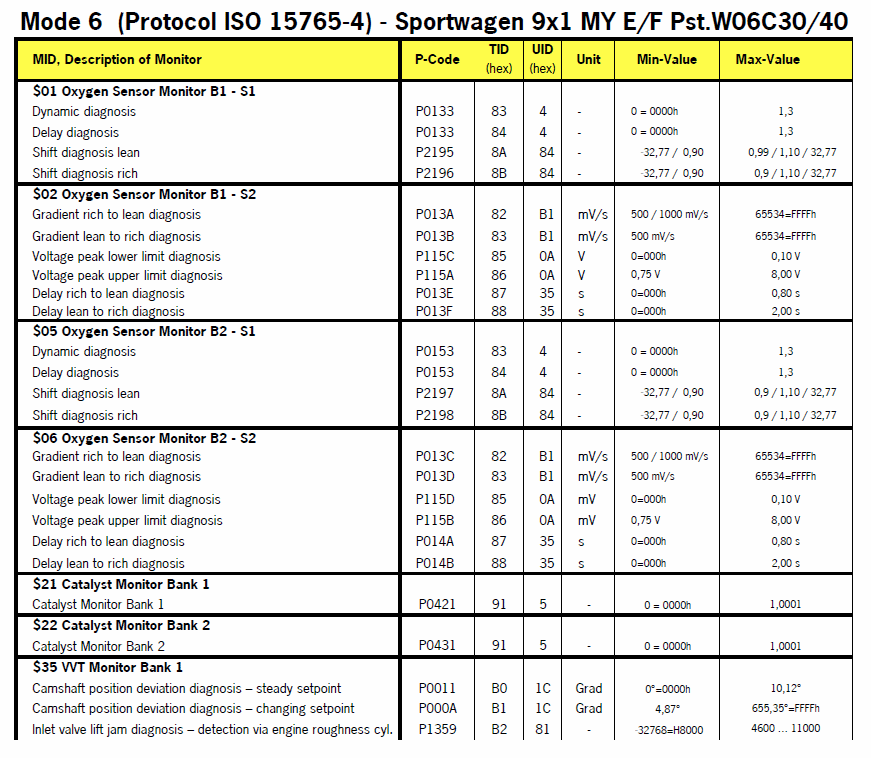

Fig 1: 911 (991), Boxster (981) & Cayman (981) - 2014-16 (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

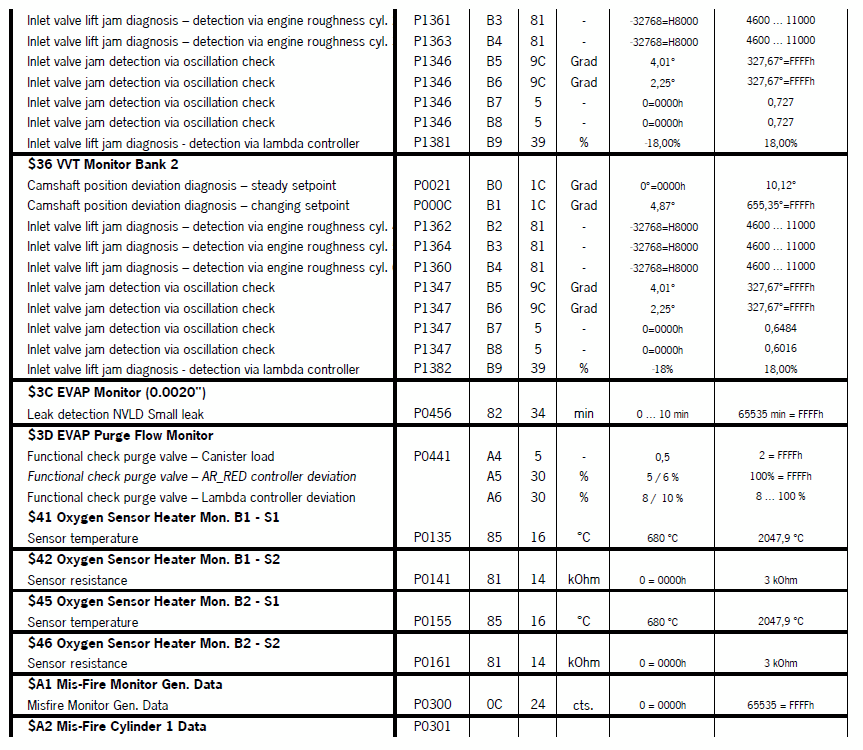

Fig 2: 911 (991), Boxster (981) & Cayman (981) - 2014-16 (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

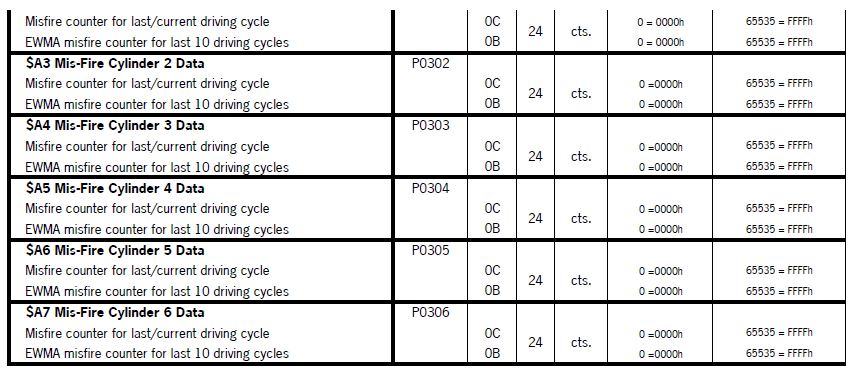

Fig 3: 911 (991), Boxster (981) & Cayman (981) - 2014-16 (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
