Replacing DME Control Unit: Notes

  1. Unscrew four fastening screws -1-  on the bracket.

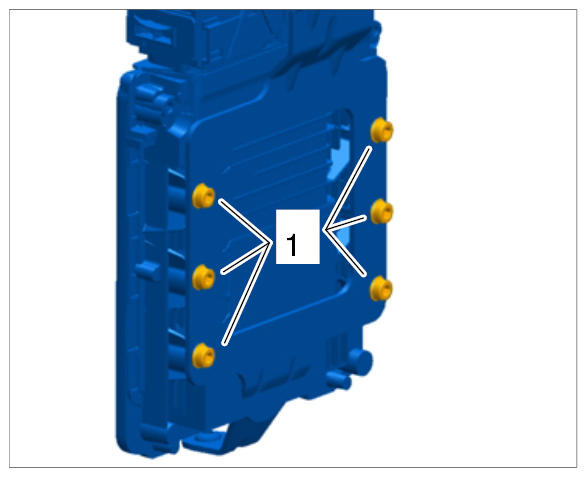

    Fig 1: Replacing DME Control Unit (Shown As Example)
    G09933718Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in four fastening screws -1-  on the bracket. → Tightening Torque: 9 Nm (6.5 ft. lb.)
