Mode 6 - PORSCHE
›
Mode 6 Data 2005-06
Mode 6 Data 2005-06

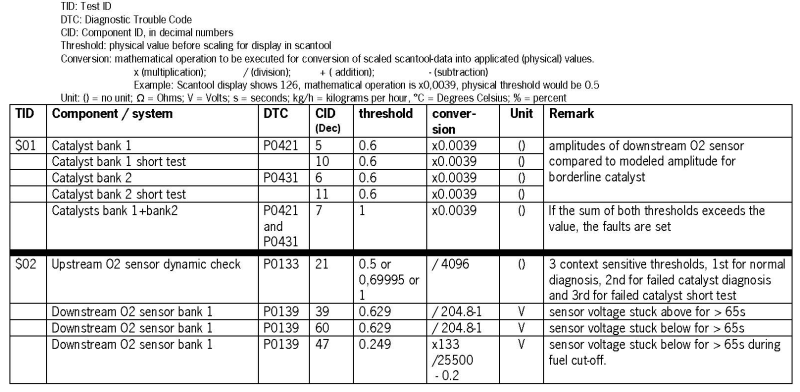

Fig 1: Cayenne (9PA) - 2005-06 (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

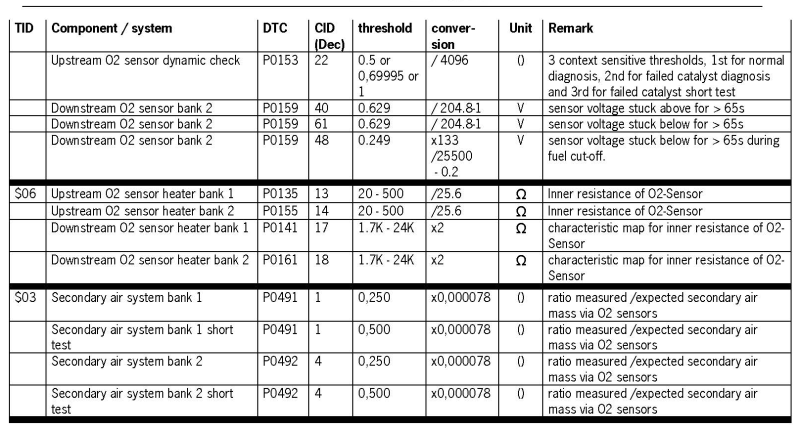

Fig 2: Cayenne (9PA) - 2005-06 (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

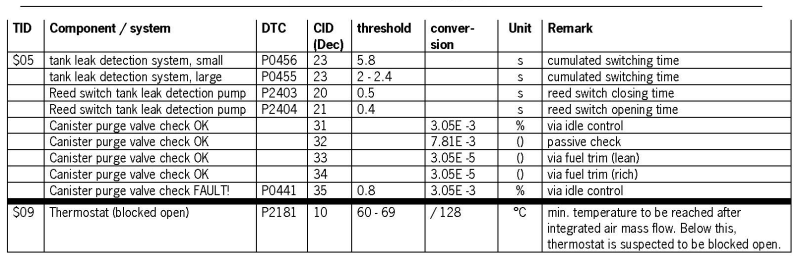

Fig 3: Cayenne (9PA) - 2005-06 (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
