Installing Control Unit For Porsche Dynamic Chassis Control (PDCC)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

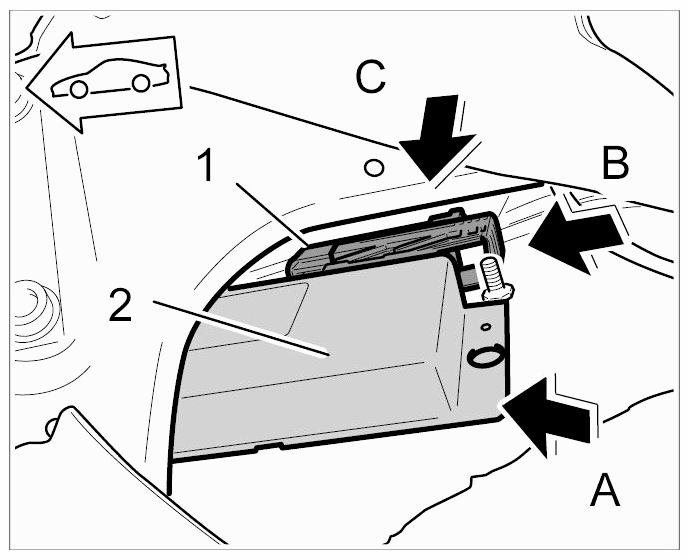

Install PDCC control unit.
1. 1.1. Fit PDCC control unit -2- (-arrow A- ).
2. 1.2. Plug in connector -1- on PDCC control unit -2- (-arrow C- ) and lock the connector -1- (-arrow B- ).

  Fig 1: Installing PDCC Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

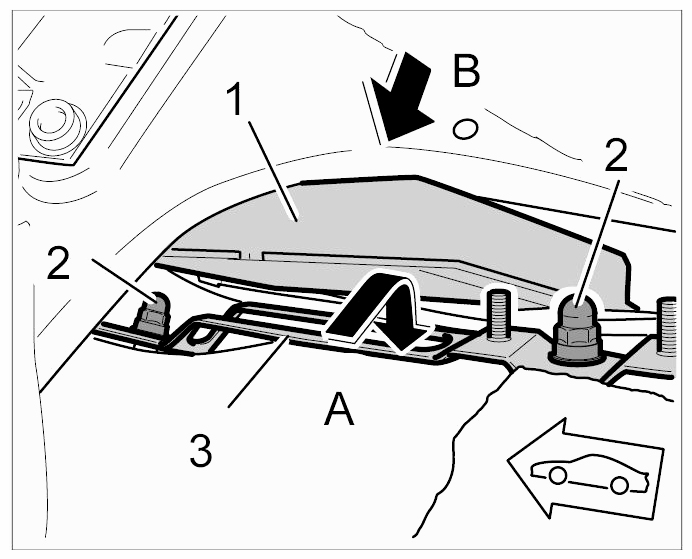

Install PDCC control unit holder.
1. 2.1. Insert PDCC control unit holder -3- and fit it on the studs -arrow A- .
2. 2.2. Secure PDCC control unit holder -3- by screwing on the fastening nuts -2- .
3. 2.3. Fit PDCC control unit -3- on the studs -arrow B- .

  Fig 2: Installing PDCC Control Unit Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

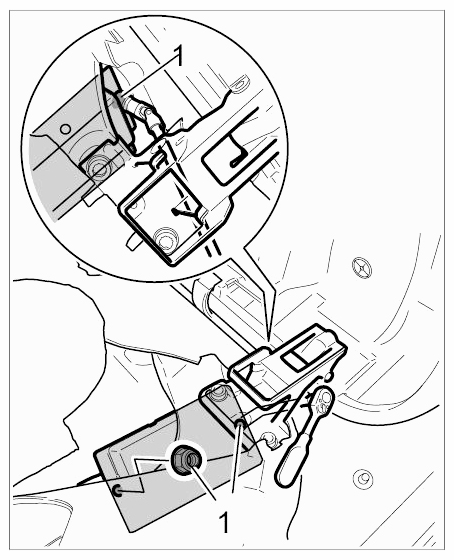

Tighten fastening nuts -1- on the control unit.

Fig 3: Identifying Fastening Nuts On Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

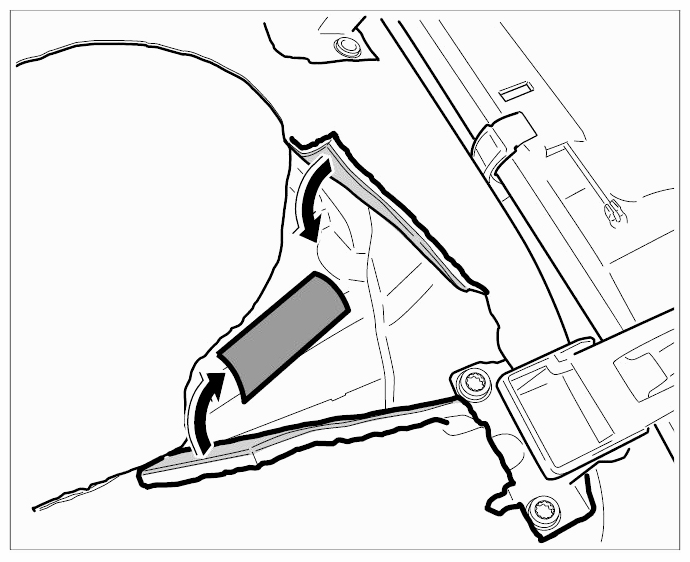

Secure carpeted floor.
1. 4.1. Affix double-sided adhesive tape in the marked area and pull protective film off the adhesive tape.
2. 4.2. Fold carpeted floor over -arrows- and press down firmly.

  Fig 4: Securing Carpeted Floor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold the right rear seat back.
