Installing The Compressor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Install in reverse order.
The air lines are coloured and designated with letters.
Pay attention to cleanliness, if necessary clean the screw connections of the air lines with a lint-free cloth.
Visually inspect all parts.
Replace locking screws and nuts.
Pay attention to tightening torques → WM 4000V0 Lifting the vehicle .
To fill the level adjustment system, use the Porsche System Tester. To do this, in the system >> Level adjustment >> select the menu item >> Fill <<; then fill the front and rear axles and the accumulator. Switch on level adjustment → WM 4000V0 Lifting the vehicle .

Fit compressor on the support, clip in the line, and fasten the cable.
Insert compressor unit and mount on the body -(A, B & C)- .

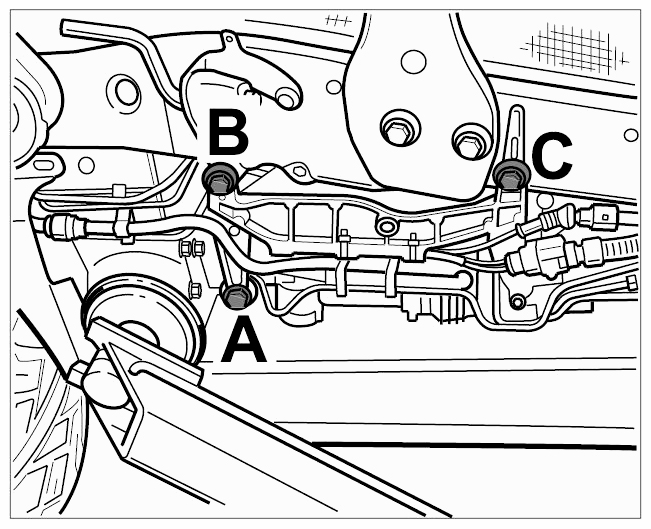

Fig 1: Identifying Compressor Unit Take Up Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the air lines for valve block air lines to the valve block.
1. -1- - black
2. -2- - lilac
3. -3- - blue
4. -4- - green
5. -5- - red
6. -6- - yellow
7. -7- - brown

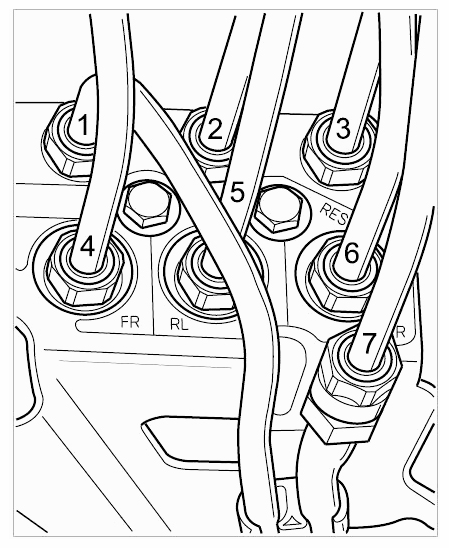

  Fig 2: Identifying Air Lines For Valve Block
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the suction lines and the plug connections.
Fill the pneumatic system using the Porsche System Tester.
