Removing The Compressor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The compressor -3- is only installed for the level adjustment system and is attached as a compact air supply unit with valve block -4- on a vibration-insulated support to the right underbody.

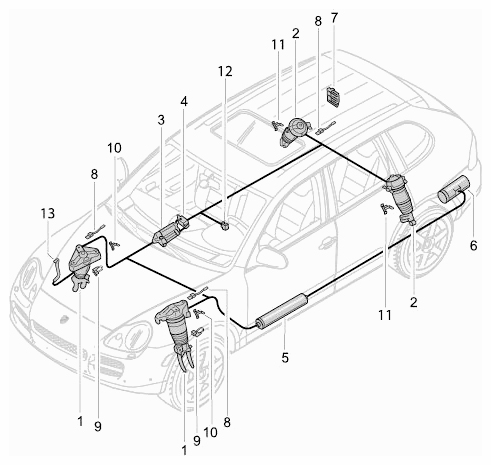

Fig 1: Identifying Air Spring Strut, Front Axle, Rear Axle, Compressor And Valve Block

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- - Air-spring strut, front axle
-2- - Air-spring strut, rear axle
-3- - Compressor
-4- - Valve block

CAUTION: Escaping residual air

Risk of eye injuries

→ Wear protective goggles.

Information

Place the take-up plates of the platform lift at the jacking points so that the fastening points of the underbody panel are accessible → WM 4000V0 Lifting the vehicle see Switching off level adjustment → Switching off level control

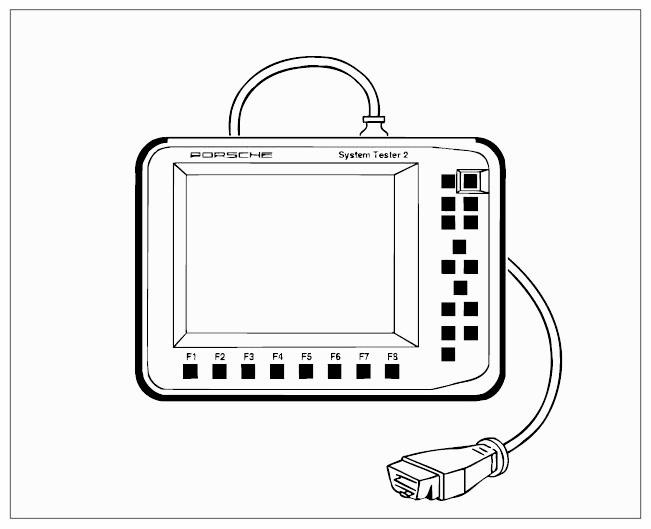

- To bleed the level adjustment system (compressed air must be released from the system), use the Porsche System Tester. To do this, in the system >> Level adjustment >> select the menu item >>Bleed<< and bleed the accumulator, and front and rear axles.

  Fig 2: Identifying Porsche System Tester
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean the screw connection of the lines from the valve block before removing.
Protect the screw connection of the lines from dirt with suitable plugs.

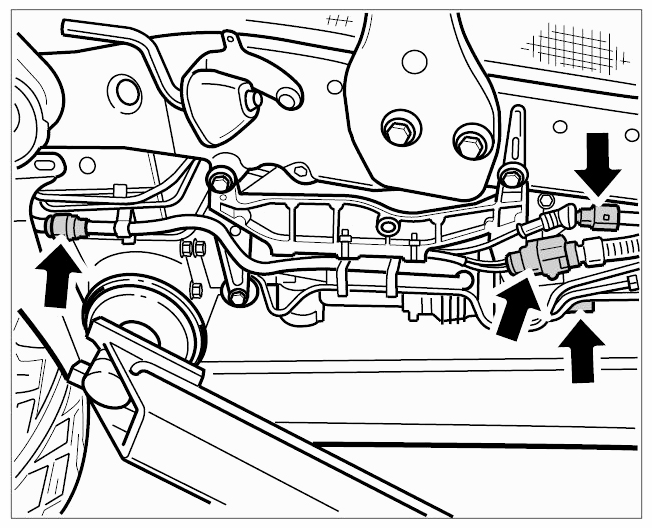

Unclip the suction line and the plug connections -arrows- .

Fig 3: Locating Suction Line Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

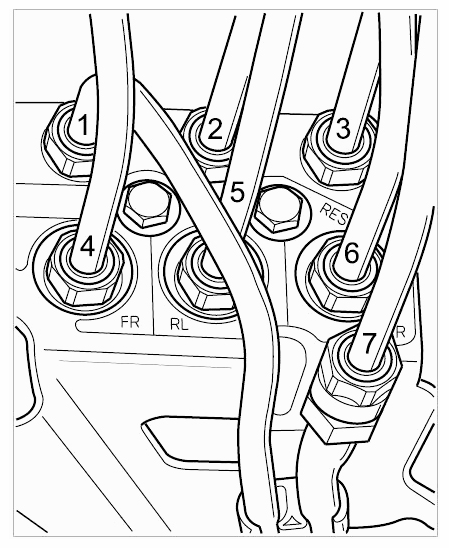

Remove the → see Fig 4 air lines (colour-coded) from the valve unit and the brown air line (running under the valve unit).

Fig 4: Identifying Air Lines (Colour-Coded) From Valve Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

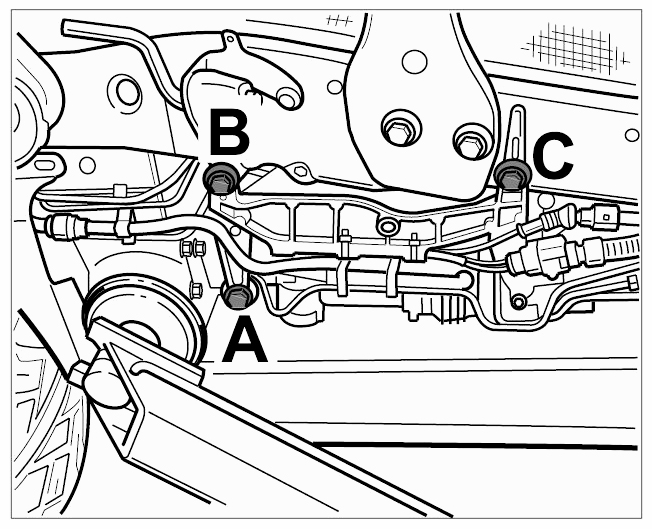

Release the take-up points on the body -A, B & C- and remove the compressor unit (compressor, valve block).

Fig 5: Identifying Compressor Unit Take Up Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect compressor from the valve unit:
- Release the tie-wrap and attachment at the support
- Unclip the air line and remove
- Remove the compressor from the support.
