Removing Level Control Module

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

The control module is located behind the right rear side section trim.

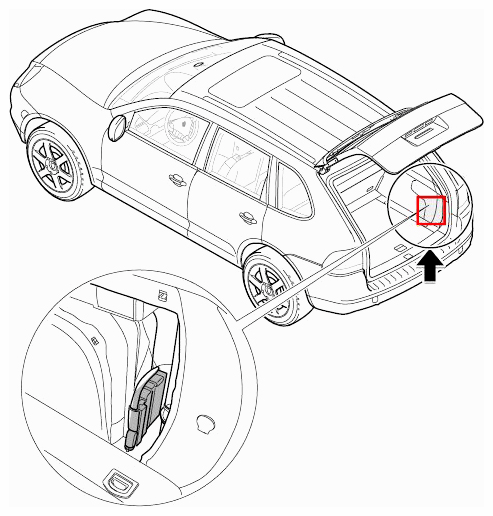

Fig 1: Identifying Level Control Module

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the cover of the right rear side section trim.
Remove warning triangle and emergency kit.
Pull up the clip of the control module holder and tilt the control module out of the holder.

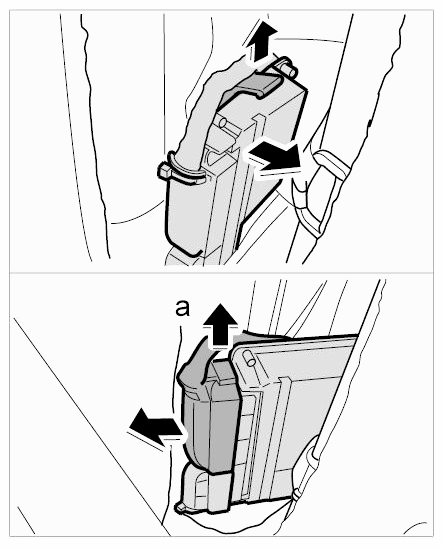

Fig 2: Pulling Plug Off Top Of Level Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the latch of the upper electrical plug upwards -a- and remove plug.
Pull out control unit and pull the latch on the electrical plug -a- and remove plug.

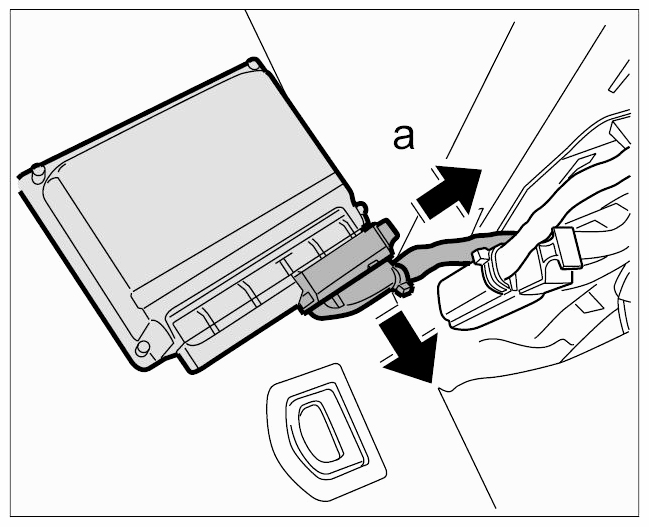

Fig 3: Pulling Plug Off Bottom Of Level Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
