Removing Front Level Sensor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

In running gear with level adjustment, a level sensor is installed on each spring strut.
The level sensor is screwed to the body and upper control arm.

Turn steering until access to the self-levelling sensor is achieved.

Counter with an open-ended wrench on the two flats -1- and unscrew the fastening nuts -2- .

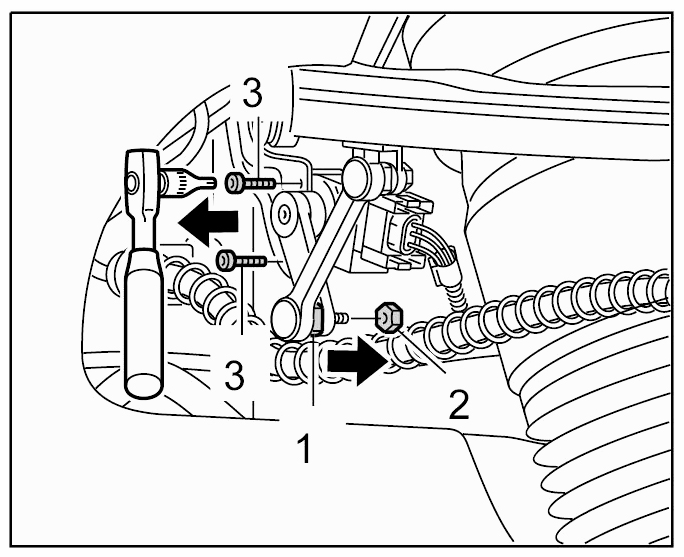

Fig 1: Loosening Fastening Nuts Using Open-Ended Wrench
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew both fastening screws -3- .
Disengage lever from self-levelling sensor, swivel it forwards and remove the sensor.

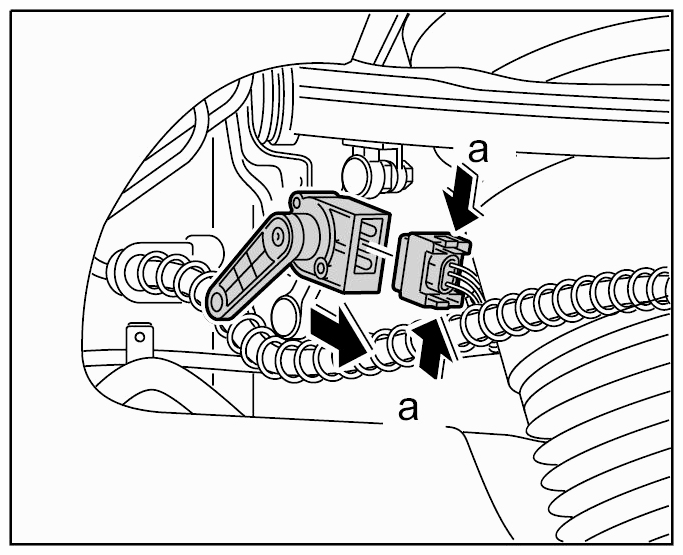

Fig 2: Removing Self-Levelling Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the electric connector together -a- and pull it off.
