Overview Of Front Air-Spring Strut

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The components of the air spring -7- (figure shows component arrangement of front air-spring strut), Items -2, 3, 4, 5- (figure shows front air-spring strut), cannot be disassembled.

Always replace the complete air spring -7- (figure shows component arrangement of front air-spring strut)!

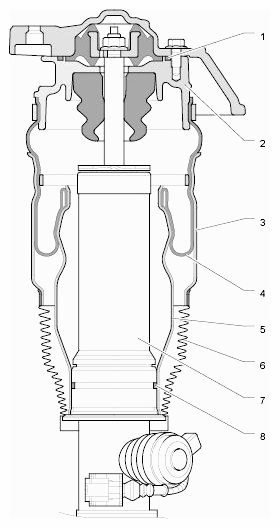

Fig 1: Identifying Front Air-Spring Strut Components

G09419328

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing ring
Lid
Outer guide
Rolling boot
Rolling piston
Bellows
Shock absorber
Sealing ring

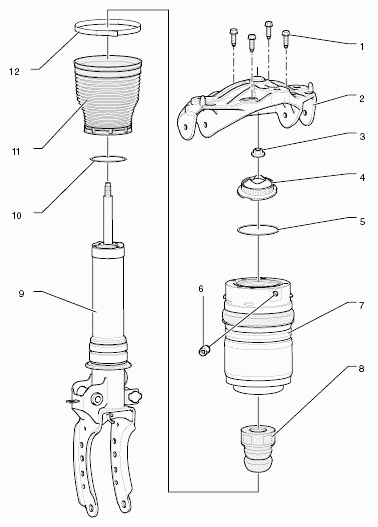

Fig 2: Identifying Component Arrangement Of Front Air-Spring Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hexagon-head bolt
Mounting saddle
Hexagon nut
Spring-strut mount
Sealing ring
Residual pressure retaining valve
Air spring
Rubber stop
Shock absorber
Sealing ring
Boot/bellows
Clamp
