Mode 6 - PORSCHE
›
Mode 6 Data 2011-13
Mode 6 Data 2011-13

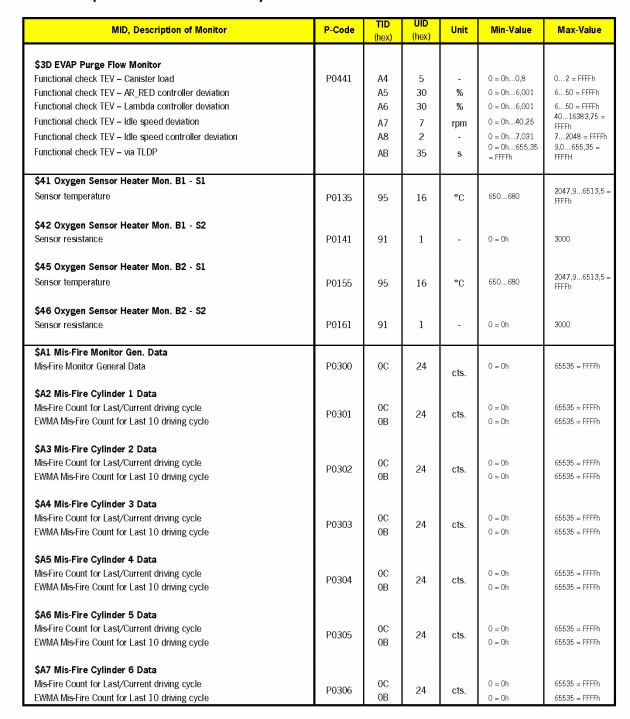

Fig 1: Panamera (970) - 2011-13 (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

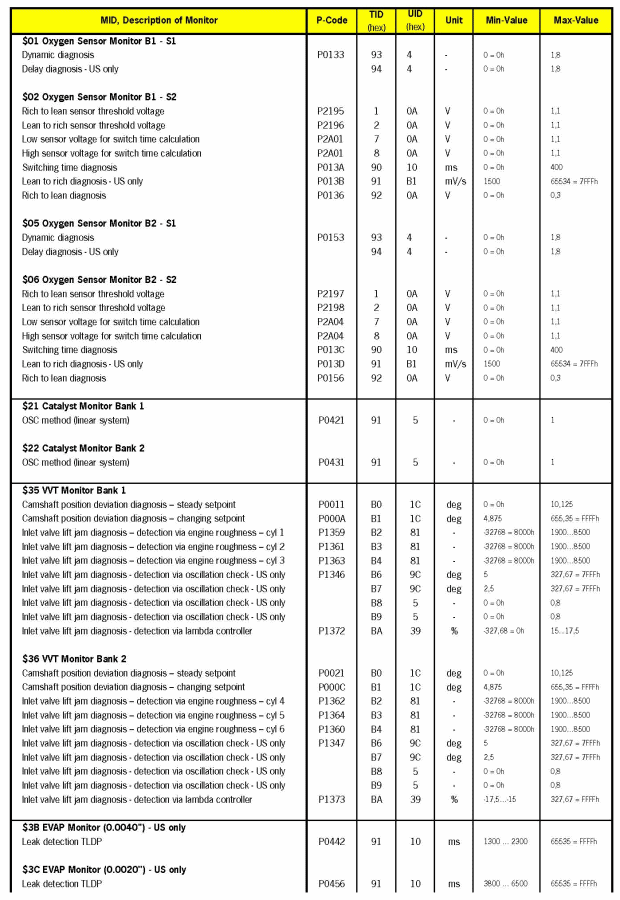

Fig 2: Panamera (970) - 2011-13 (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
