Mode 6 Data 2014-16 V8 Turbo

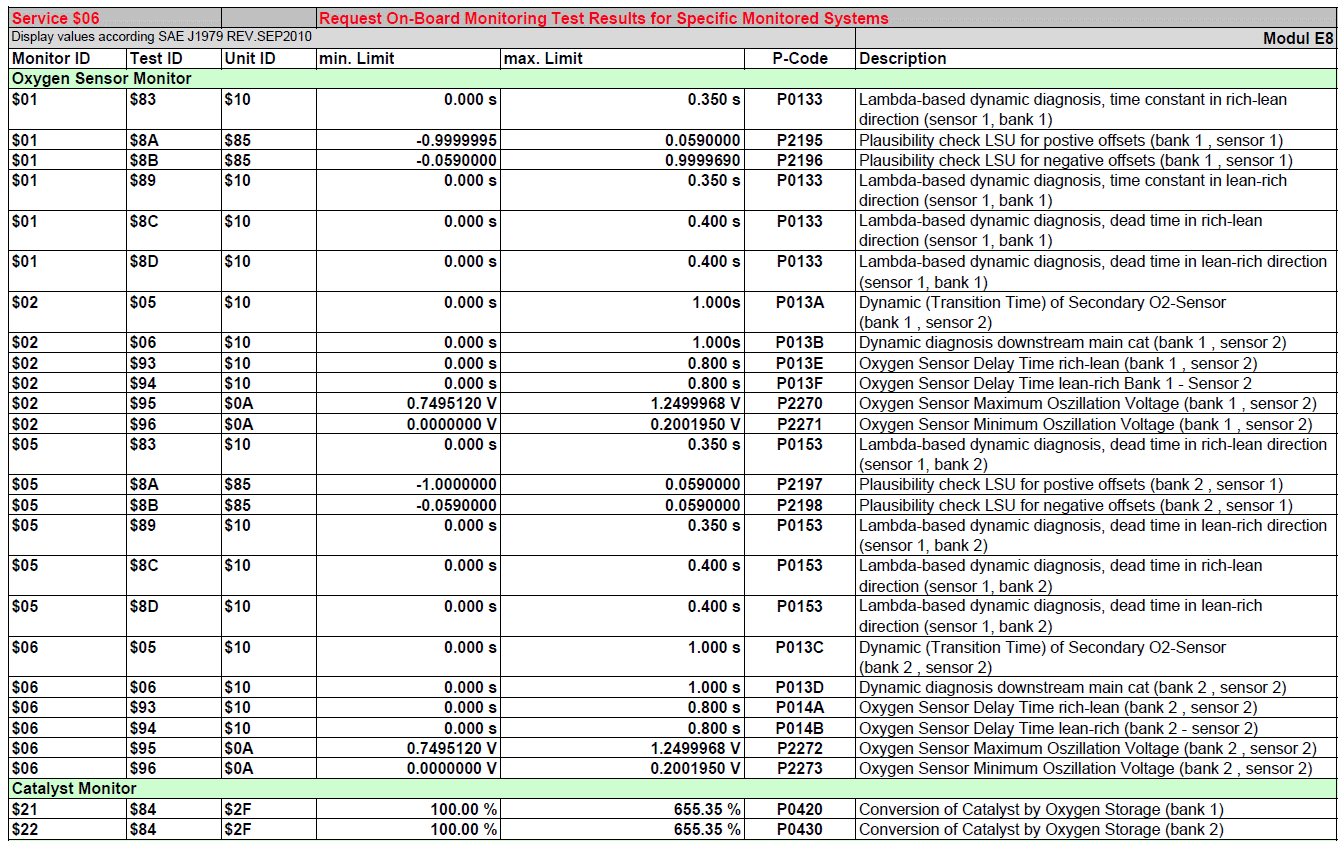

Fig 1: Panamera (970) V8 GTS - 2014-16 (1 Of 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

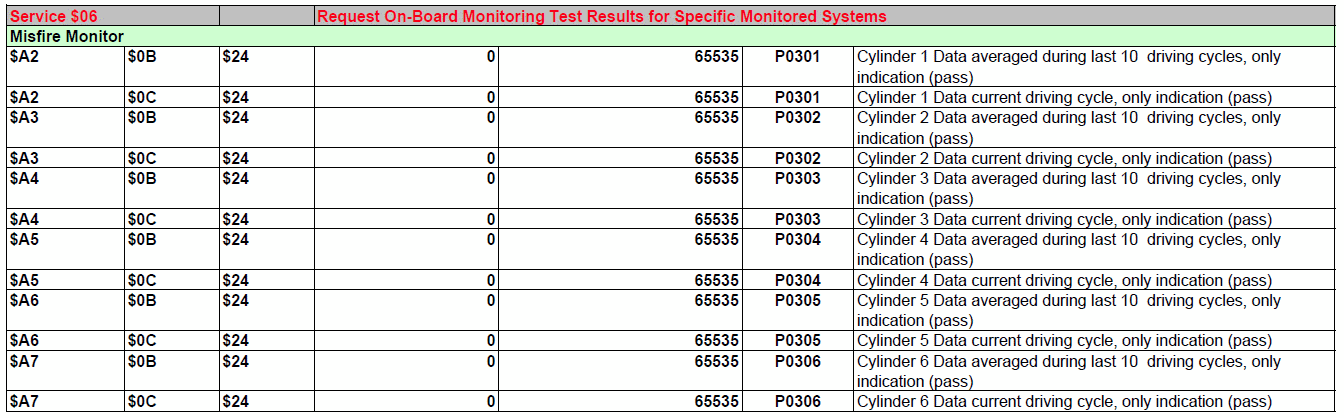

Fig 2: Panamera (970) V8 GTS - 2014-16 (2 Of 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

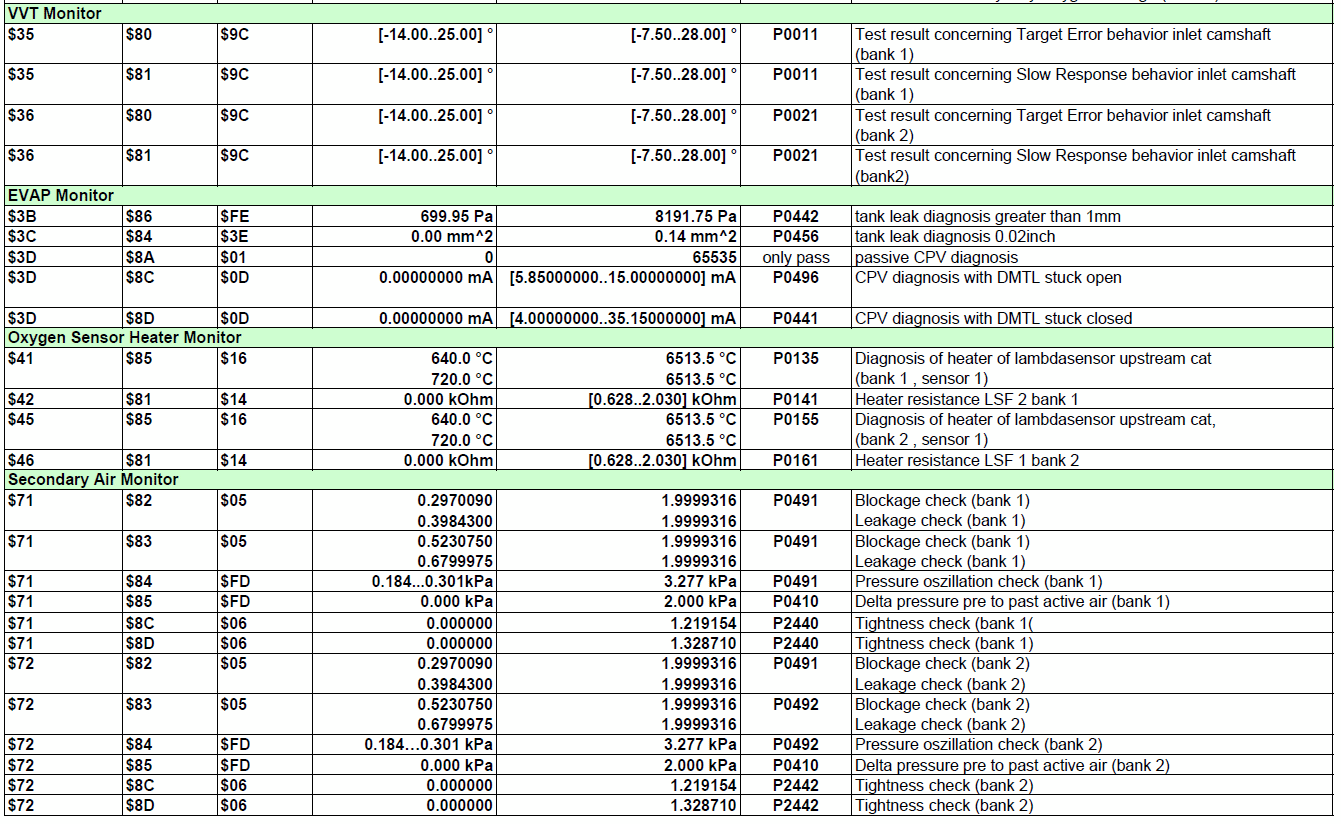

Fig 3: Panamera (970) V8 GTS - 2014-16 (3 Of 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
