Removing Pedestrian Protection

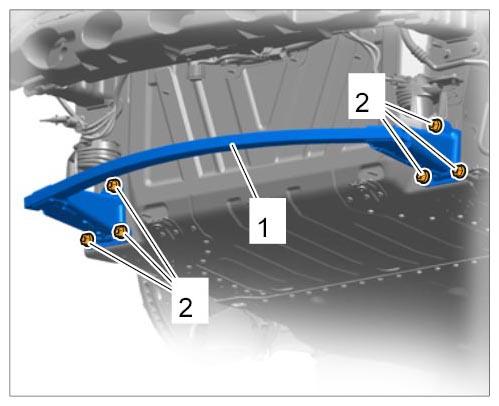

Fig 1: Identifying Pedestrian Protection Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Loosen the nuts -2-  on the pedestrian protection -1-  .
2. Remove pedestrian protection -1-  from the body.
Fig 2: Removing Pedestrian Protection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
