Installing Control Unit For Rear Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

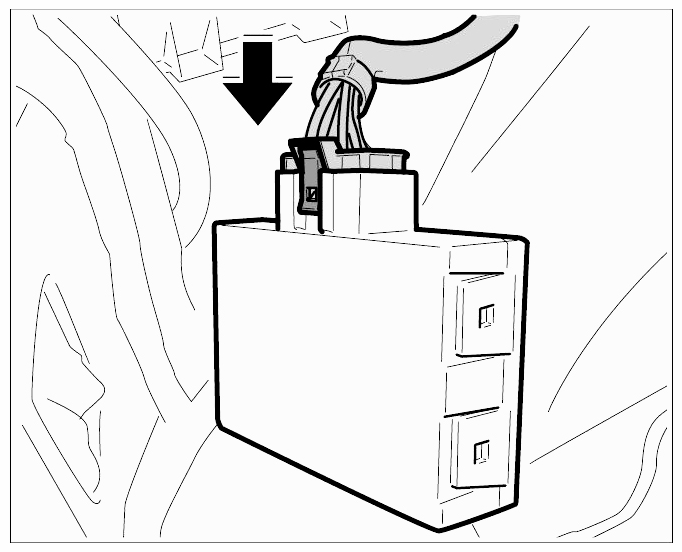

Plug in connector on control unit for rear lid -arrow- until the connector engages securely.

Fig 1: Plugging Connector On Control Unit For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

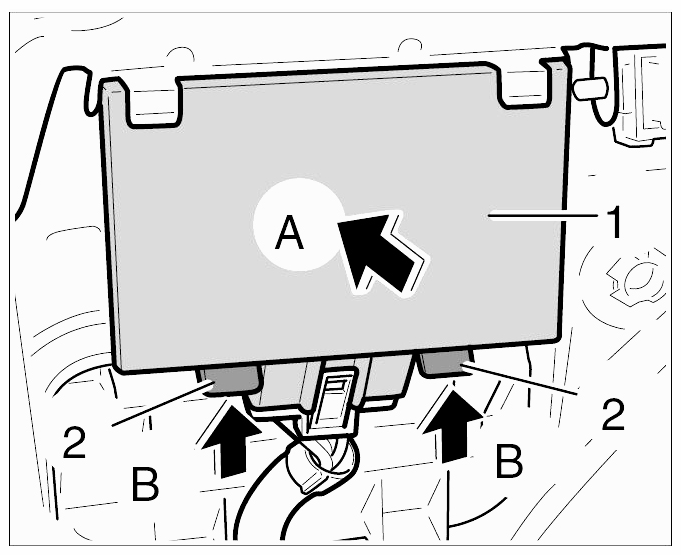

Fit control unit for rear lid -1- into the holder from below and press it in -arrow A- until the two clips -2- engage securely -arrows B- .

Fig 2: Installing Control Unit For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only for vehicles without auxiliary air conditioner.

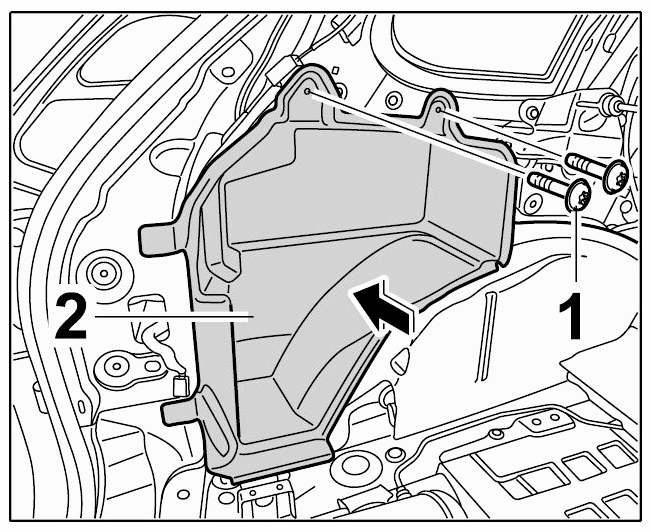

Position package box -2- on the body -arrow- and secure with the fastening screws -1- .

Fig 3: Installing Package Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
