WM 692419 Removing and installing front belt lock
›
Technical values
Technical values
TORQUE SPECIFICATION
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

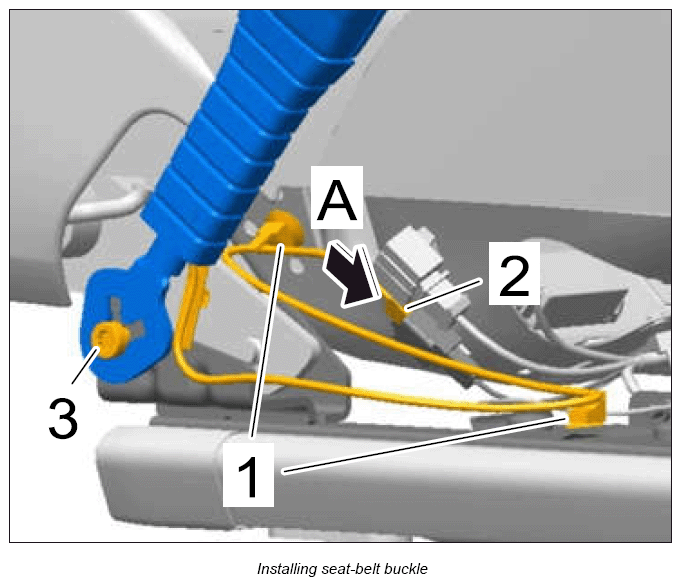

Fastening screw securing front belt lock to seat
Item 3
Tightening torque
50 Nm (37 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
