Removing And Installing Pedestrian Protection

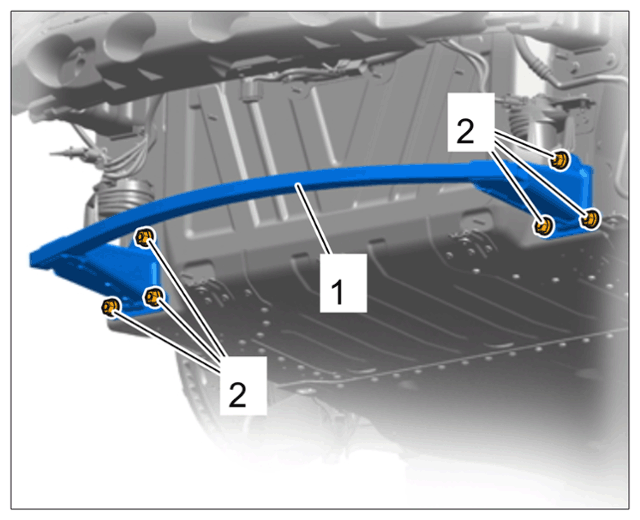

  1. Screw off nuts -2-  on pedestrian protection -1-  .
  2. Remove pedestrian protection -1-  from the body.
    G14954791Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Installation is performed in reverse order. Pay particular attention to the following:

    Tightening torque for nut on pedestrian protection: > Tightening torque 23 Nm (17 ftlb.) +/- 2 Nm (1.5 ftlb.)
