Component Overview

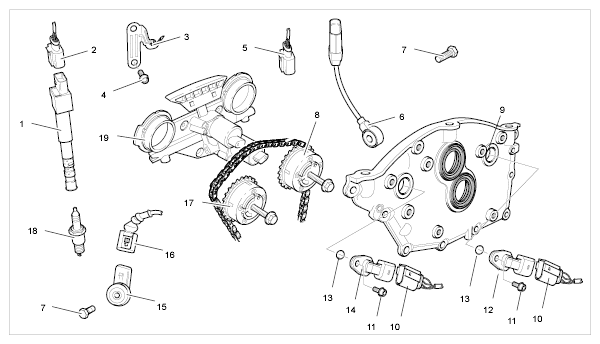

Fig 1: Overview Of Ignition System
G09934211Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Bar Ignition Module
  2. -2-  - Cable Plug
  3. -3-  - Support
  4. -4-  - Screw → Tightening Torque: 20 Nm (15 ft. lb.)
  5. -5-  - Cable Plug
  6. -6-  - Knock Sensor
  7. -7-  - Screw → Tightening Torque: 20 Nm (15 ft. lb.)
  8. -8-  - Exhaust Camshaft Adjuster 32A
  9. -9-  - Cover Section
  10. -10-  - Cable Plug
  11. -11-  - Screw → Tightening Torque: 10 Nm (7.5 ft. lb.)
  12. -12-  - Hall Sender G163, Exhaust Camshaft
  13. -13-  - Sealing Ring; Replace
  14. -14-  - Hall Sender G40, Intake Camshaft
  15. -15-  - Knock Sensor
  16. -16-  - Cable Plug
  17. -17-  - Intake Camshaft Adjuster 24E
  18. -18-  - Spark Plug → Tightening Torque: 20 Nm (15 Ft. Lb.)
  19. -19-  - Timing Chain Housing
