Control Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2015 Land Rover Range Rover, and 2014 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

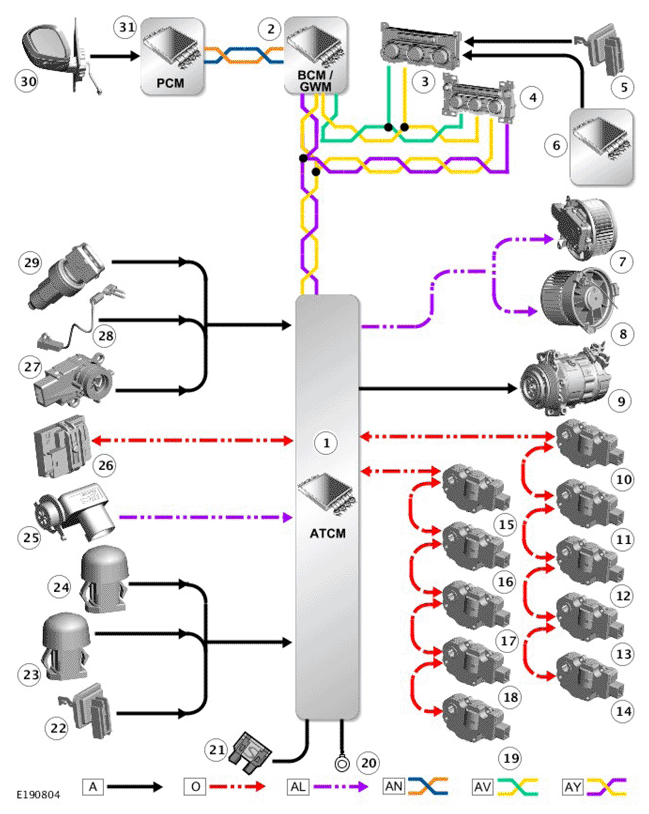

A = HARDWIRED; O = LOCAL INTERCONNECT NETWORK (LIN) BUS; AL = PULSE WIDTH MODULATION (PWM); AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN BUS; AV = HS CAN COMFORT BUS; AY = HS CAN POWER MODE ZERO
| ITEM | DESCRIPTION |
|---|---|
| 1 | Automatic Temperature Control Module (ATCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Rear Integrated Control Panel (RICP) |
| 4 | Front Integrated Control Panel (ICP) |
| 5 | Duct air temperature (4 off) |
| 6 | Auxiliary evaporator temperature sensor |
| 7 | Blower motor - Front |
| 8 | Blower motor - Rear |
| 9 | Air conditioning (A/C) compressor clutch |
| 10 | Blend motor - Front |
| 11 | Blend motor - Front |
| 12 | Blend motor - Front |
| 13 | Blend motor - Front |
| 14 | Blend motor - Front |
| 15 | Blend motor - Rear |
| 16 | Blend motor - Rear |
| 17 | Blend motor - Rear |
| 18 | Blend motor - Rear |
| 19 | Blend motor - Rear |
| 20 | Ground |
| 21 | Supply |
| 22 | Duct air temperature (8 off) |
| 23 | Sunload sensor - Front |
| 24 | Sunload sensor - Rear |
| 25 | Pollution sensor |
| 26 | Humidity sensor |
| 27 | In-vehicle temperature sensor |
| 28 | Evaporator temperature sensor |
| 29 | Refrigerant pressure sensor |
| 30 | Ambient Air Temperature (AAT) sensor |
| 31 | Powertrain Control Module (PCM) |
