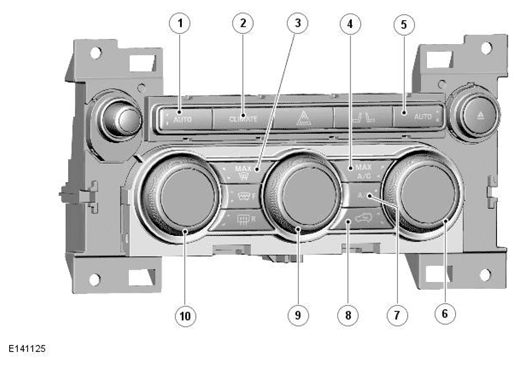

Front Integrated Control Panel
| ITEM | DESCRIPTION |
|---|---|
| 1 | Automatic mode switch - Left |
| 2 | Climate control menu switch |
| 3 | Maximum demist switch |
| 4 | Maximum air conditioning switch |
| 5 | Automatic mode switch - Right |
| 6 | Temperature rotary - Right |
| 7 | Air conditioning system on/off switch |
| 8 | Recirculation switch |
| 9 | Blower switch |
| 10 | Temperature rotary - Left |
The front Integrated Control Panel (ICP) is installed in the center of the instrument panel and contains push switches and rotary switches for operation of the climate control system. The push switches, except the Climate shortcut button and the rotary push, contain an amber status Light Emitting Diode (LED). Display screens are integrated into the center of the rotary switches to display the selected temperature and blower speed as applicable. In addition to the switches for the climate control system, the ICP also contains switches for operation of:
- The audio system
For additional information, refer to: AUDIO SYSTEM .
- The hazard warning lamps
For additional information, refer to: EXTERIOR LIGHTING .
- The front seat heaters/climate system
For additional information, refer to: SEATS .
- The windshield and rear window heaters.
For additional information, refer to: GLASS, FRAMES AND MECHANISMS .
The ICP converts selections on the climate control switches into High Speed (HS) Controller Area Network (CAN) Power Mode Zero messages and transmits them to the Automatic Temperature Control Module (ATCM). The ICP is also on the HS CAN Comfort bus.
