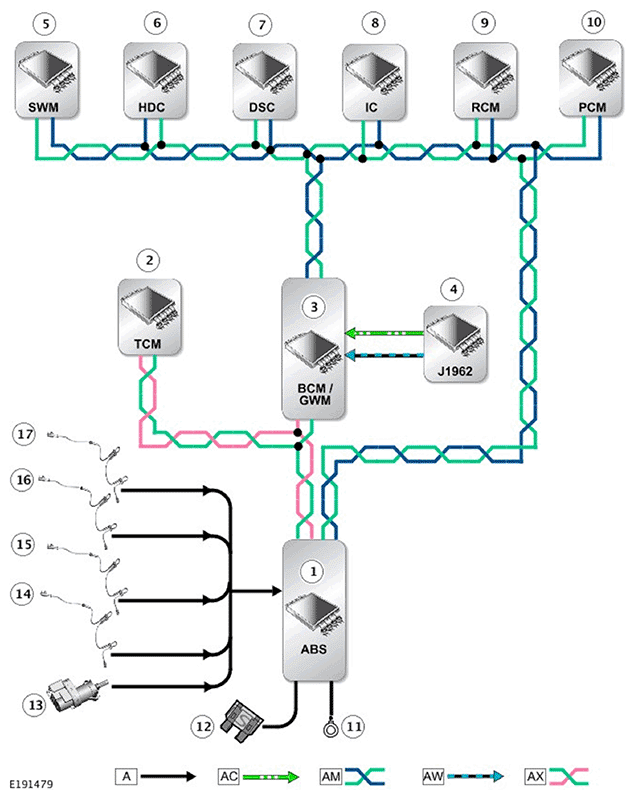

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AC = DIAGNOSTIC; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AW = ETHERNET; AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock brake system (ABS) control module |
| 2 | Transmission Control Module (TCM) |
| 3 | Powertrain Control Module (PCM) |
| 4 | Brake switch |
| 5 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 6 | Diagnostic connector (J1962) |
| 7 | Steering Angle Sensor Module (SASM) |
| 8 | Steering Wheel Module (SWM) |
| 9 | Hill Descent Control (HDC) Switch |
| 10 | Dynamic Stability Control (DSC) switch |
| 11 | All Terrain Control Module (ATCM) |
| 12 | Instrument Cluster (IC) |
| 13 | Restraints Control Module (RCM) |
| 14 | Adaptive Speed Control Module (ASCM) |
| 15 | Ground |
| 16 | Power supply |
| 17 | Wheel speed sensor |
| 18 | Wheel speed sensor |
| 19 | Wheel speed sensor |
| 20 | Wheel speed sensor |
