2 Zone Manual
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

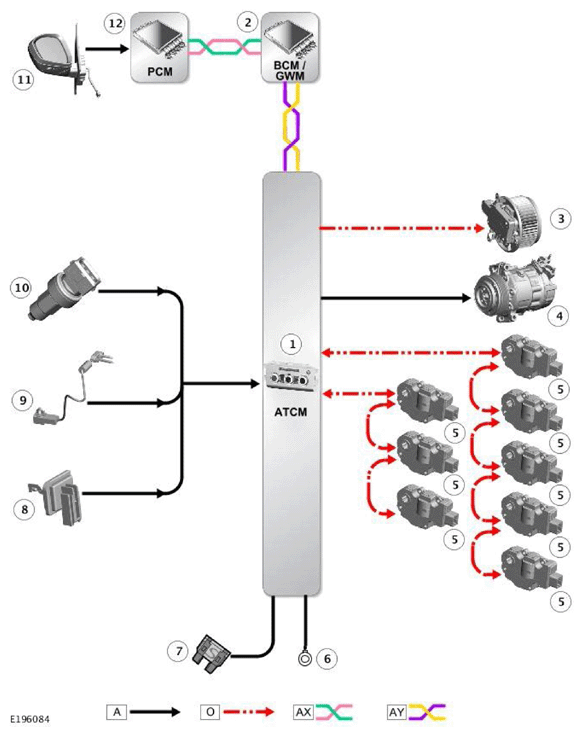

A = HARDWIRED CONNECTION: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: AL = PULSE WIDTH MODULATION (PWM): AX = FLEXRAY: AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO
| ITEM | DESCRIPTION |
|---|---|
| 1 | Automatic Temperature Control Module (ATCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Blower Motor - Front |
| 4 | Air Conditioning (A/C) motor clutch |
| 5 | Stepper motor (8 off) |
| 6 | Ground |
| 7 | Supply |
| 8 | Duct air temperature sensor (6 off) |
| 9 | Evaporator temperature sensor |
| 10 | Refrigerant pressure sensor |
| 11 | Ambient Air Temperature (AAT) sensor |
| 12 | Powertrain Control Module (PCM) |
