4 Zone Automatic
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

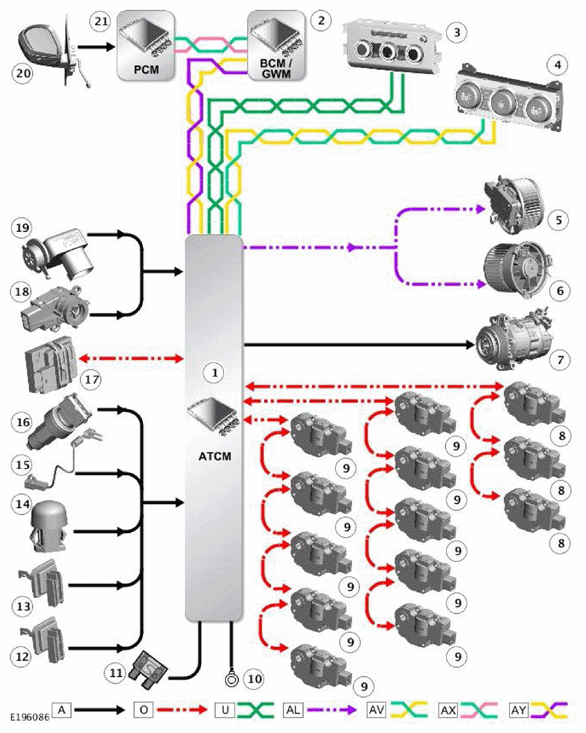

A = HARDWIRED CONNECTION: O = LOCAL INTERCONNECT NETWORK (LIN) BUS: U = MEDIUM SPEED (MS) CONTROLLER AREA NETWORK (CAN) PRIVATE BUS: AL = PULSE WIDTH MODULATION (PWM): AV = HIGH SPEED (HS) CAN COMFORT BUS: AX = FLEXRAY: AY = HS CAN POWER MODE ZERO
| ITEM | DESCRIPTION |
|---|---|
| 1 | Automatic Temperature Control Module (ATCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Integrated Control Panel (ICP) |
| 4 | Rear Integrated Control Panel (RICP) |
| 5 | Blower Motor - Front |
| 6 | Blower Motor - Rear |
| 7 | Air Conditioning (A/C) compressor clutch |
| 8 | Stepper motor - Auxiliary climate control system (3 off) |
| 9 | Stepper motor (10 off) |
| 10 | Ground |
| 11 | Supply |
| 12 | Duct air temperature sensor (8 off) |
| 13 | Duct air temperature sensor Auxiliary climate control system (4 off) |
| 14 | Sunload sensor |
| 15 | Evaporator temperature sensor |
| 16 | Refrigerant pressure sensor |
| 17 | Humidity sensor |
| 18 | In vehicle temperature sensor |
| 19 | Pollution sensor |
| 20 | Ambient Air Temperature (AAT) sensor |
| 21 | Powertrain Control Module (PCM) |
