Automatic Temperature Control Module - 2 Zone Automatic
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

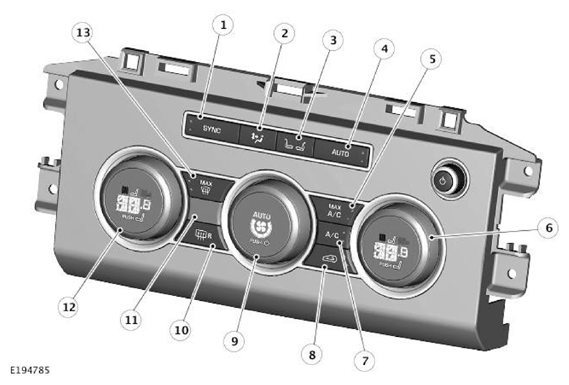

| ITEM | DESCRIPTION |
|---|---|
| 1 | Synchronize switch |
| 2 | Front climate control switch |
| 3 | Seats switch |
| 4 | Auto switch |
| 5 | Maximum Air Conditioning (A/C) switch |
| 6 | Temperature rotary - Right |
| 7 | Air Conditioning (A/C) system on/off switch |
| 8 | Recirculation switch |
| 9 | Blower speed switch |
| 10 | Heated rear windscreen |
| 11 | Heated windshield |
| 12 | Temperature rotary - Left |
| 13 | Maximum heated windshield |
The control panel on a 2 Zone AUTO system has the Automatic Temperature Control Module (ATCM) and the control panel integrated into the one unit. The unit is called the ATCM, not Integrated Control Panel (ICP).
The ATCM is installed in the center of the instrument panel and contains rotary and push switches for operation of the climate control system. The push switches, except the front climate control switch, seat switch and the rotary push, contain an amber status Light Emitting Diode (LED). Display screens are integrated into the center of the rotary switches to display the selected temperature and blower speed as applicable. In addition to the switches for the climate control system, the ATCM also contains switches for the operation of:
- The front seat heaters/climate system For additional information, refer to: SEATS .
- The windshield and rear window heaters. For additional information, refer to: GLASS, FRAMES AND MECHANISMS .
