Automatic Temperature Control Module - 2 Zone Manual
WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

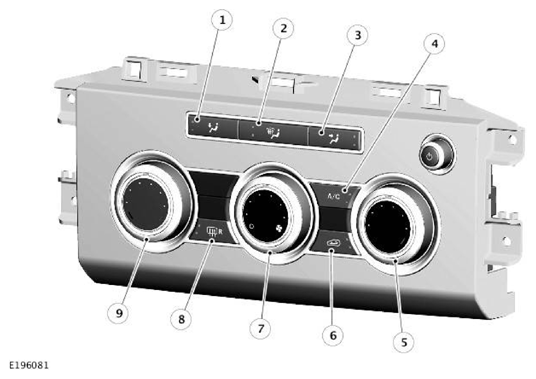

| ITEM | DESCRIPTION |
|---|---|
| 1 | Air Distribution - Floor |
| 2 | Air Distribution - Windshield |
| 3 | Air Distribution - Face |
| 4 | Air Conditioning (A/C) switch |
| 5 | Temperature rotary - Right |
| 6 | Recirculation switch |
| 7 | Blower speed switch |
| 8 | Heated rear window switch |
| 9 | Temperature rotary - Left |
The control panel on a 2 Zone Manual system has the Automatic Temperature Control Module (ATCM) and the control panel integrated into the one unit. The unit is called the ATCM, not Integrated Control Panel (ICP).
The temperature rotary switches have blue and red indications and a blower rotary switch with Light Emitting Diodes (LED). There are three buttons on the top of the panel to control air distribution and three more buttons to control functions.
