Integrated Control Panel: Removal

WARNING: This page is about a different car, the 2018 Land Rover Discovery and 2017 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

  2. NOTE: Repeat the step for the other side.

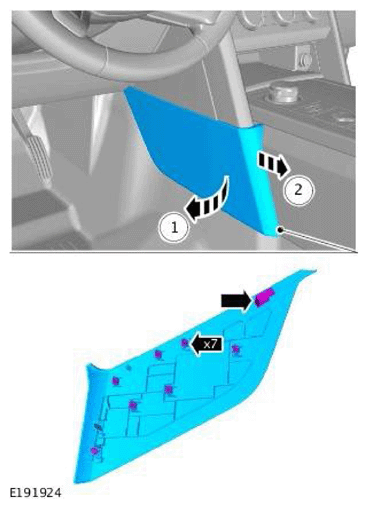

    G12011557

    Remove the side covers.

  3. NOTE: Repeat the step for the other side.

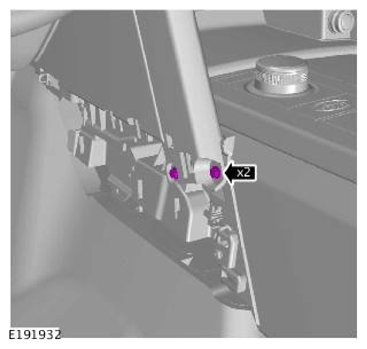

    G12011558
    • Remove the bolts.

      Torque:  10 Nm

  4. NOTE: Repeat the step for the other side.

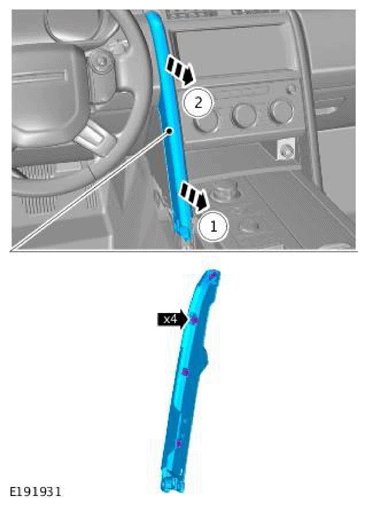

    G12011559

    Remove the vertical finisher.

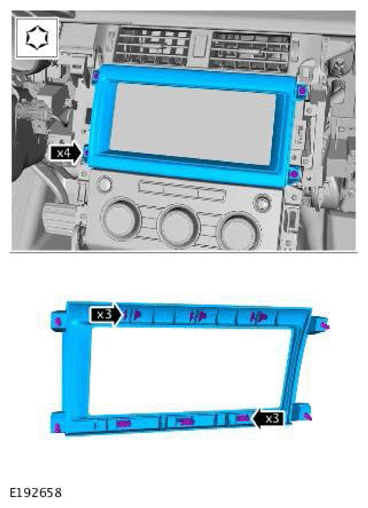

  5. G12011560
    • Remove the touch screen trim cover.

      Torque:  5 Nm

    Vehicles with fixed integrated control panel

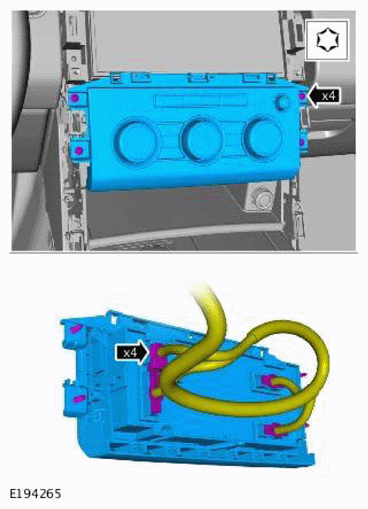

  6. G12011561
    • Disconnect the electrical connectors.
    • Remove the integrated control panel.

      Torque:  5 Nm

    Vehicles with deployable integrated control panel

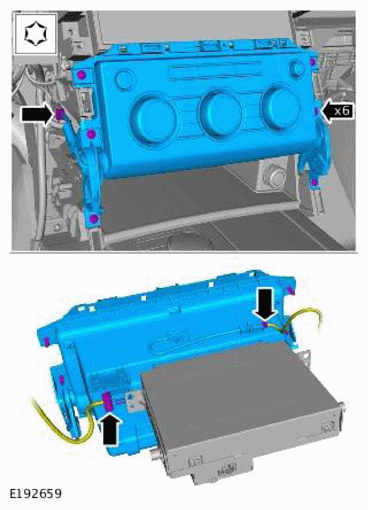

  7. G12011562
    • Disconnect the electrical connectors.
    • Remove the integrated control panel.

      Torque:  5 Nm

  8. NOTE: Do not disassemble further if the component is removed for access only.

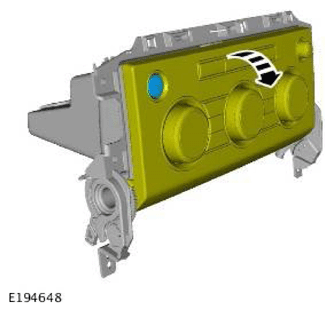

    G12011563

    Release the integrated control panel.

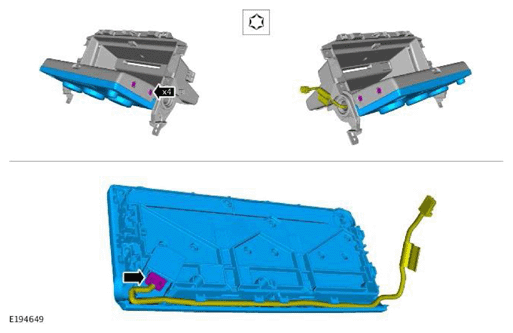

  9. G12011564
    • Disconnect the electrical connector.
    • Remove the integrated control panel.

      Torque:  5 Nm
