Installing Control Unit For Rear Convenience Systems

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

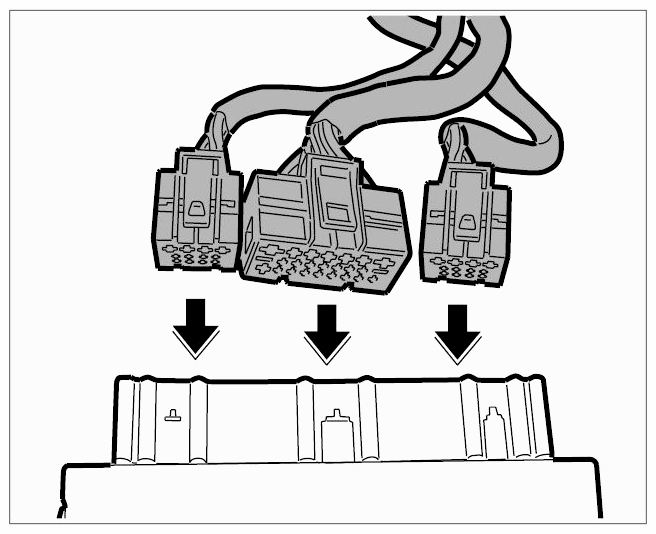

Press electric connectors into control unit until they are felt to engage.

Fig 1: Inserting Electrical Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

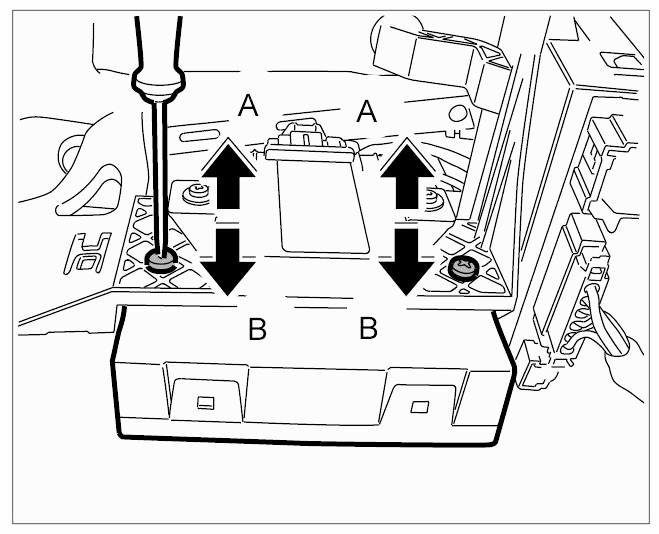

Position control unit under the retaining device and screw tight with the two fastening screws -B- .

Fig 2: Positioning Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
