69 Occupant Protection/Personal Protection -- 982 - BOXSTER/CAYMAN
›
WM, 697019 Removing And Installing Pedestrian Protection
›
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

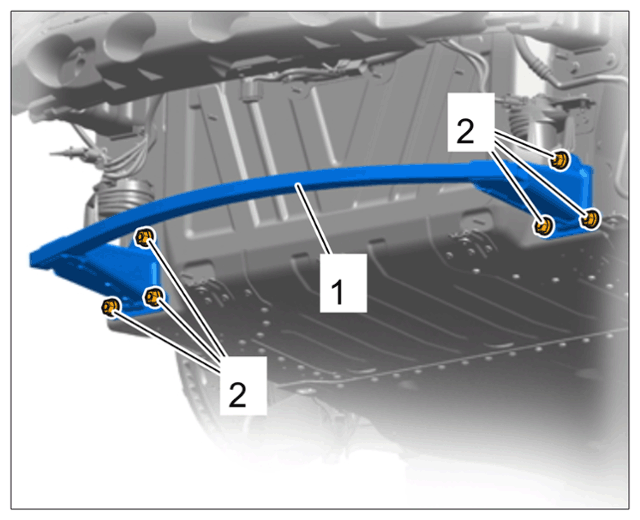

Fastening nut for pedestrian protection
Item 2
Tightening torque
23 Nm (17 ftlb.)
+/- 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing pedestrian protection
