Removing And Installing Rotation-Rate Sensor For PSM

WARNING: Combination sensor not calibrated or calibrated incorrectly

Unexpected vehicle handling
Combination sensor does not work
Malfunction in combination sensor
- Calibrate the vehicle after installing or replacing the combination sensor using > 9818 - PIWIS Tester II .
- Only perform calibration when the vehicle is positioned horizontally and the brake is not actuated.

Information

The following functions are integrated in the combination sensor:

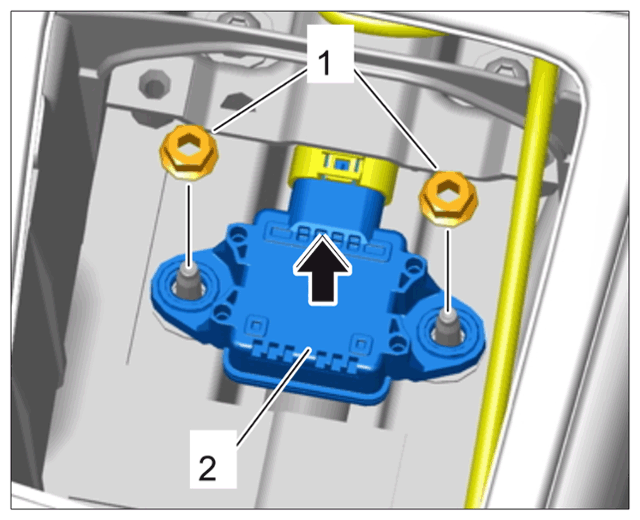

Unscrew nuts 1 and pull rotation-rate sensor -2- out slightly -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rotation-rate sensor

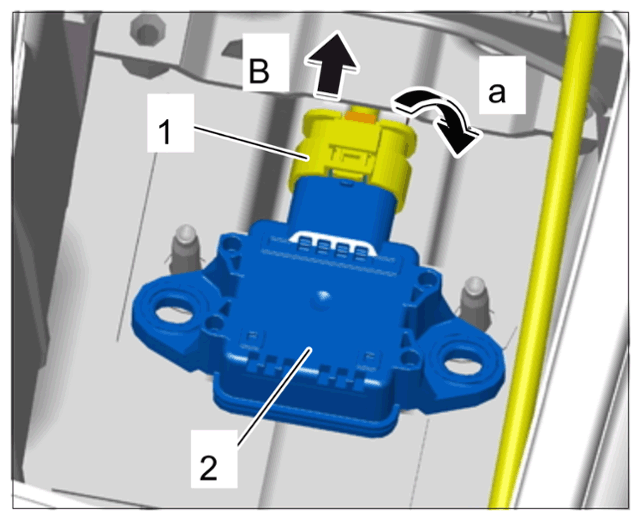

Release electric plug connection 1 on the rotation-rate sensor -2- (-arrow a-) and disconnect it -arrow B- .
Remove rotation-rate sensor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection
Installation is performed in reverse order.
Screw in and tighten nuts. > Tightening torque 10 Nm (7.5 ftlb.)
